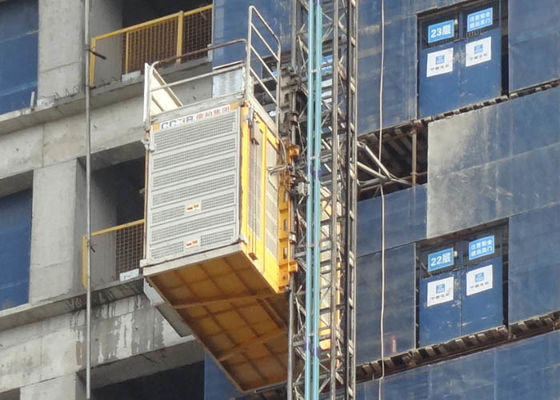

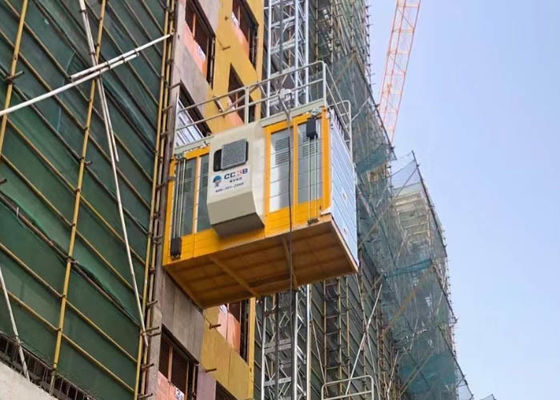

Temporary Outdoor Rack And Pinion 3 Tons Construction Elevators - SC300 KP-B15
| Place of Origin | Xiamaen, China |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC300 |
| Minimum Order Quantity | 1 unit |
| Price | in USD |
| Packaging Details | A 40'HQ container can load one unit of 50 meter high hoist |
| Delivery Time | 25 days after receiipt of down payment |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | House Building, Bridge Building, Factories, Commerical Mall | Design | Modular Design And As Per EU Regulations |
|---|---|---|---|
| Material | Q355B Steel Plate | Motor Control | FC |
| Drive Mode | Rack And Pinion | Processing | CNC Machines, Tool Fixtures, Robots |
| Highlight | 3 Tons Construction Elevators,Q355B Steel Construction Elevators,Temporary Outdoor Rack And Pinion Hoist |
||
Product Description
Temporary Outdoor Rack and Pinion Construction Elevators - SC300 KP-B15
Features
Standardization and universalization of cages make them can be used as left or right cage freely.
The standardized and universal electrical cabinet, resistance box and base make them can be replaced wholly or individually, and their installation position can also be changed.
The electrical cabinet and/or resistance box of the same type hoists are interchangeable.
Made of Q355B steel.
The hot dip galvanised or dip painting finishing make the inner wall of pipes also be protected, greatly improve the corrosion resistance.
The center-setting rack and drive device is of large power transmission moment, good force balance on drive frame.
Apply helical gearbox with large bearing capacity, small tooth wear, impact resistance, of which service life is greatly improved (about 3 times more than worm worm reducer).
Guide rollers of KANGBO hoists are non-eccentric, there is no need to adjust the clearance of rollers after installation.
Technical Data
| Item & Article No. | SC300BG, KP-B15; |
| Payload capacity | 3,000 kg |
| Lifting speed | 0–60 m/min. |
| Max. lifting height | 250/400 m* |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | Frequency Control |
| Engine power | 3x23 kw |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Mast Section | Square column 650*650*1508 mm with bolted rack |
| Rack module | 8 |
FAQ
What is the advantage of applying non-eccentric rollers on the rack and pinion construction elevators?
After the rack and pinion hoists are installed, the technicians must adjust the position of rollers to ensure the gaps between rollers and mast section pips are proper.
The rollers of lifts drive devices and hoist cars must be adjusted to be in place, and the gaps must be right, or, the elevators will shake or tremble when running.
And adjusting the rollers needs experiances and serious and careful attitude.
KANGBO Group finished this difficult jobs on its production line on behalf of KANGBO construction hoists users.
Apply non-eccentric rollers of elevator cars and drive devices mean the users don't need to adjust the rollers after installation.
Machine certified TUV according to European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009.
