2T Payload 46M/Min FC Motor Rack Pinion Construction Site Hoist
| Place of Origin | Xiamaen, China |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200BZ |
| Minimum Order Quantity | 1 unit |
| Price | in USD |
| Packaging Details | A 40'HQ container can load one unit of 50 meter high hoist |
| Delivery Time | 25 days after receiipt of down payment |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item | SC200, 2 Tons | Purpose And Uses | Vertical Transportation Of Man And Materials |
|---|---|---|---|
| Design | Modular Designed As Per EU Regulations | Material | Q355B Steel |
| Processing Procedure | Processed By CNC Machines And Robots | Finishing | Sandblasting And Baking Finish |
| Highlight | FC Motor Construction Site Hoist,46M/Min Construction Site Hoist,2T Payload Rack Pinion Hoist |
||
Product Description

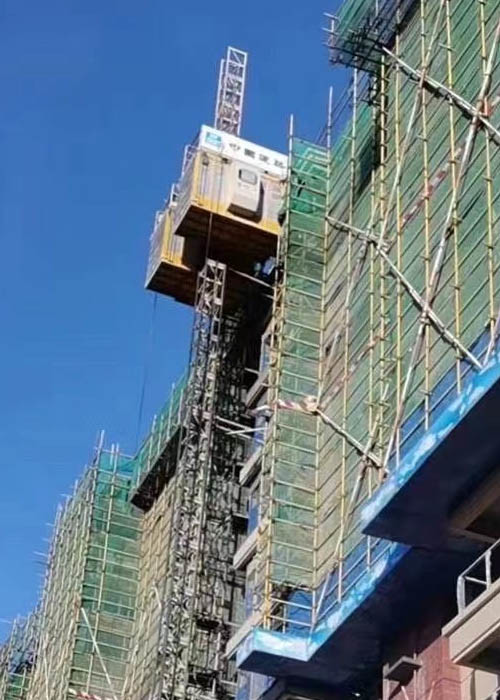

SC200BZ 2 ton capacity 0-46m speed FC motor Rack Pinion Construction Hoist
Overview
Truly modular, the drive devices and cages are generic and interchangeable.
Available in a multiple choice of doors or ramps.
The modular and standard system offers flexibility, efficiency, low energy consumption and low cost of ownership, making it the ultimate choice for both construction and rental companies.
A cage top crane available to facilitate the assembly.
Frequency control makes starting and stopping very smoothly, with low starting current and much less wear and tear.
Features
* Apply high efficiency and energy-saving helical gearbox.
* Racks bolted at the center of mast sections, with less partial load torque of cages, make the machine run more stably and smoothly.
* Apply non-eccentric rollers, so, need to adjust the rollers after installs. That means easier installation and less errors. * Cage roof made by a full tread plate with edges totally welded. No water leakage at cage roof.
* With bigger and stronger car frame.
* LED Interior Car Lighting.
* Interlocked roof door.
* Drop test facility with remote.
* A frequency control (FC), with closed-loop.
Technical Data
| Payload capacity | 2,000 kg |
| Lifting speed | 0–46 m/min. |
| Max. lifting height | 450 m |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Cage doors | Modular doors, entrance door and discharge door can be exchanged. |
| Motor control | FC control |
| Engine power | 2x15 kw |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | square column 650*650 mm with bolted rack |
| Length mast section | 1.508 m |
| Rack module | 8 |
| * Be equipped with a frequency control unit (FC), with closed-loop. | |
