Variable Frequency Drive 2 Ton Rack Pinion Construction Site Elevator
| Place of Origin | Xiamaen, China |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200BG |
| Minimum Order Quantity | One unit |
| Price | Negocitated in USD |
| Packaging Details | 1*40'HQ container can load a unit of 50 meter high hoist |
| Delivery Time | 25-30 days after receiipt of down payment |
| Payment Terms | T/T, L/C at sight |
| Supply Ability | 300 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Description | Rack And Pinion Construction Lift | Application | House Building, Bridge Building, Factories, Stock Houses, Commerical Mall |
|---|---|---|---|
| Drive Mode | Pinion Driven By Motors And Gearboxes | Material | Q355B Steel |
| Motor Control | Frequency Control | Design | Modular Designed And As Per EU Regulations |
| Highlight | 2 Ton Construction Site Elevator,Variable Frequency Drive Construction Site Elevator,Rack Pinion Elevator |
||
Product Description
Energy Saving Variable Frequency Drive 2 Ton Rack And Pinion Construction Site Elevator
Description

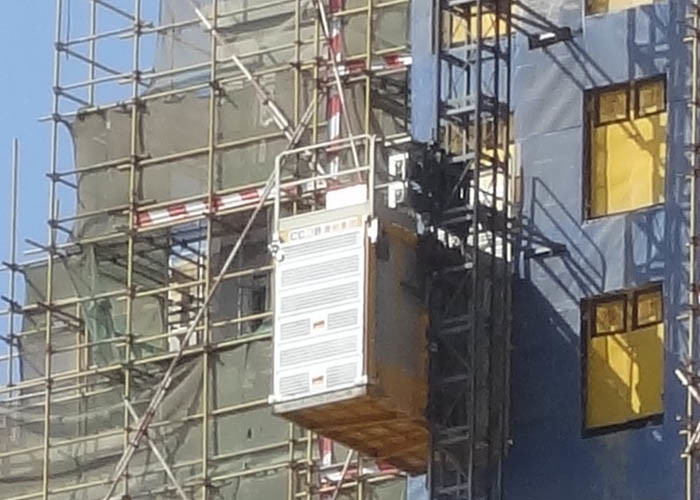

Construction hoist is a kind of elevator that is driven by motors to run the cage with pinions rolling on the rack of mast, the device has been equipped with anti-falling safety device, overload device and numerous mechanical interlocking safety instrument to ensure people and cargo safety.

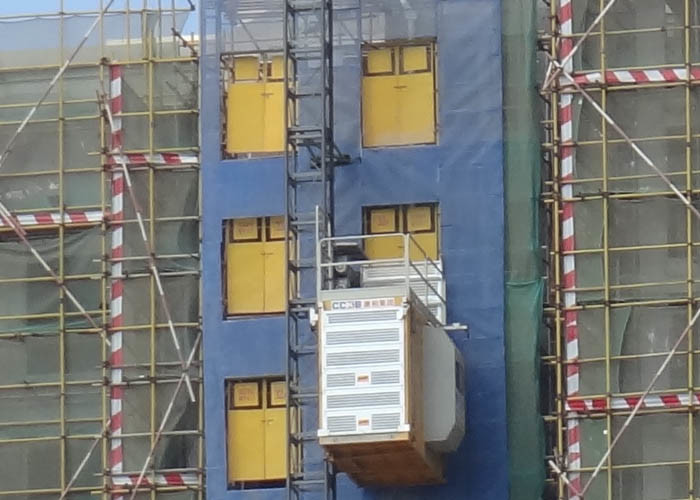

The mast is attached to the building by the wall frame, it can be hoisted with the buildings increased.
The product has absorbed advanced manufacturing technology, it has the characteristics of innovative design, reasonable structure, simple operation, easy accessibility, safe and reliable.
Its safety design and configuration is full compliance with international standards.
It is mainly applicable to high-rise building construction personnel and cargo transport of bridges, chimneys, buildings, also can be used for the vertical transportation of warehouse, loading docks.
Configuration
There is a electrical small crane available to facilitate the assembly of the construction elevator.
Cage doors are modularized for flexible use.
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
Manual or Automatic Controls of the hoist is optional.
Lighting inside construction elevator car is LED ceiling lamp
The construction material hoist cage roof doors are equipped with Interlock.
Equipped with hoist drop test facility with remote control.
Technical Data
| Item & Article No. | SC200BG, KP-B09 |
| Payload capacity | 2,000 kg |
| Lifting speed | 0–60 m/min. |
| Max. lifting height | 450 meters |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | FC control |
| Engine power | 2x23 kw/87Hz |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | square column 650*650*1508 mm with bolted rack |
| Rack module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
