36M/Min Rack And Pinion Passenger Material Hoist For Construction Site
| Place of Origin | Xiamaen, China |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200 |
| Minimum Order Quantity | One unit |
| Price | Negocitated in USD |
| Packaging Details | One 40'HQ container can load 1 unit of 50 meters high elevator |
| Delivery Time | 25-30 days after receiipt of down payment |
| Payment Terms | T/T, L/C at sight |
| Supply Ability | 300 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Tranportation At Construction Site, Building Site, Bridges, Chimney, Plants, Etc. | Design | According To European Standard |
|---|---|---|---|
| Modularized | Design And Production | Safety Meatures | Full Set According To EU Regulations |
| Material | Q355B Steel | Production | Processed By CNC Machines, Robots In Assembly Line. |
| Finishing | Sandblasting And Baking Finish | Color | Yellow |
| Highlight | 36M/Min Passenger Material Hoist,Modular Passenger Material Hoist,36M/Min Construction Site Hoist |
||
Product Description

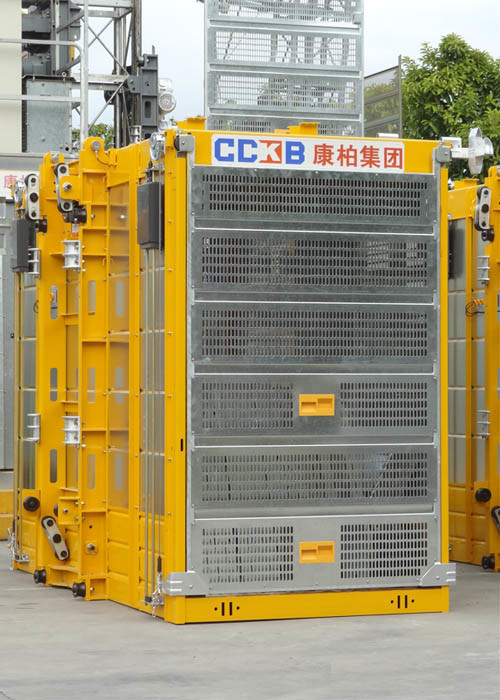

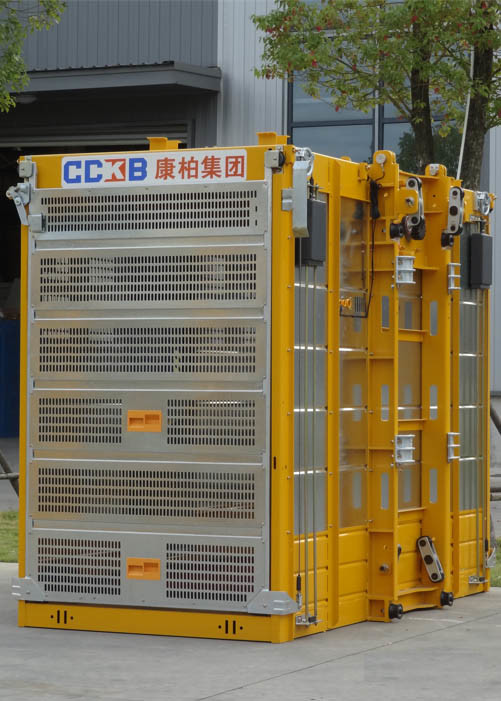

Construction SC200 36 M / Min Rack And Pinion Passenger/Material Hoist Elevator
It is the truly modular rack and pinion hoist design, so the elevator drive devices and cars are generic and interchangeable.
Multiple choice of construction lifts car doors or ramps is available.
The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
Features
1. High quality of Motors, Schneider inverter Frequency Control;
2. Strong load capacity, low voltage start;
3. Reasonable optimization design, strong structure, convenient installation and debugging;
4. Modular design and standardized production;
5. Self made reliable Anti-drop Safety Device;
6. Self made and own patented high quality gear Reducer.
Technical Data
| Item & Article No. | SC200BD, MP-B05; SC200/200BD, MP-B06 |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–36 m/min. |
| Max. Lifting Height | 250 m |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Cage Doors | 3 Doors per Cage; Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 2x11 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack Module | 8 |
