VFD Drive Rack & Pinion Construction Man And Material Hoist 0-60M/Min
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CCC |
| Model Number | Rack and Pinion Construction Hoist SC200BG KP-B11 SC200/200BG KP-B12 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate in USD |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Rack And Pinion Construction Hoist | Application | Material And Passenger Transportation At Construction Site |
|---|---|---|---|
| Material | Q355B Steel | Production | Processed By CNC Machines |
| Finishing | Sandblasting And Paint, Galvanised | Drive | VFD Drive |
| Highlight | 60M/Min Construction Man Material Hoist,VFD Drive Man Material Hoist,VFD Drive Rack And Pinion Hoist |
||
Product Description

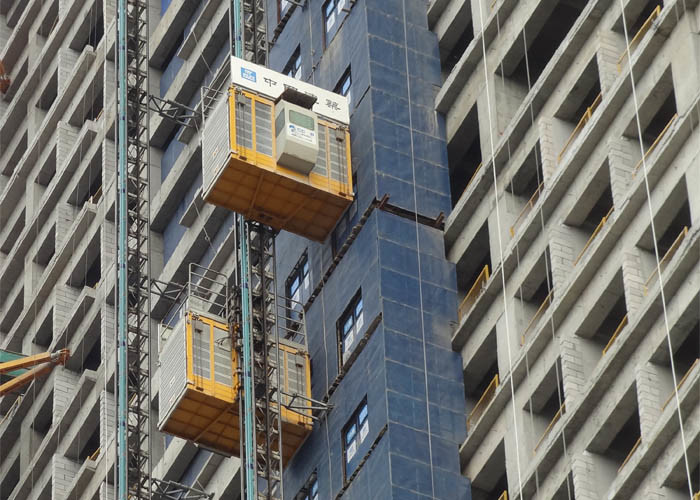

VFD Drive Rack & Pinion 0-60M/Min Construction Mand and Material Hoist
Construction Material Hoist Design
The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
Construction Material Hoist Optional Configuration
Smooth operation, little wear and tear, long work life.
Sliding Contact Line (Integrated Conductive Rail or Busbar) power supply system made specially for rack and pinion lifts.
An intelligent elevator control system, Multi-function Control System, with functions of fault detect, display and alarm, and automatic cage landing/stop and floor selector, is available.
Automatic greasing machine for rack and pinion elevator is availble.
Construction Material Hoist Technical Data
| Item & Article No. | SC200BG, MP-B11; SC200/200BZ, MP-B12 |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–60 m/min. |
| Max. Lifting Height | 250/400 m* |
| Cage Width (Internal) | 1.5 m |
| Cage Length (Internal) | 3.2 m |
| Cage Height (Internal) | 2.35 m |
| Cage Doors | Flap Type as Ramp Exit Door is available |
| Drive Unit | VFD (Variable Frequency Drive) |
| Engine power per cage | 3 x15 KW |
| Gearbox | Helical Reducer |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
