SC200/200 FIC-08 Fully Intelligent Control Passenger And Material Rack And Pinion Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200 FIC-08 |
| Minimum Order Quantity | 1 unit |
| Price | As per configurations |
| Delivery Time | 25 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 150 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | SC200/200 Passenger And Material Hoist |
||
|---|---|---|---|
Product Description

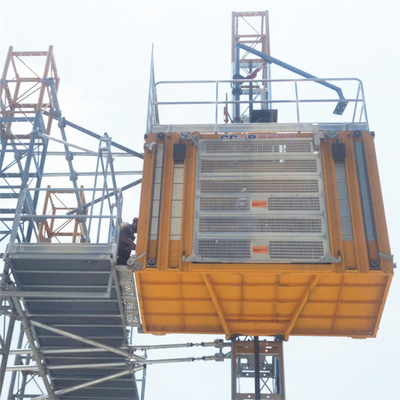

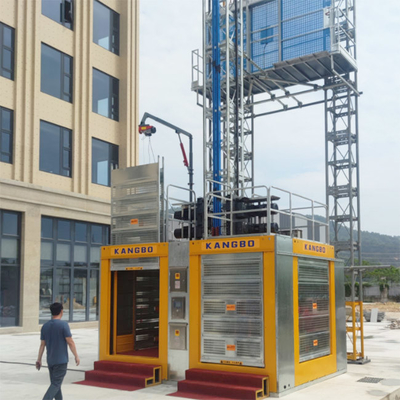

SC200/200 FIC-08 Fully Intelligent Control Passenger And Material Rack And Pinion Hoist
Design
It is the truly modular rack and pinion hoist design, so the elevator drive devices and cars are generic and interchangeable.
Multiple choice of construction lifts car doors or ramps is available.
The modular and standardizing design.
Production and Materials
KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production.
The material elevator components are versatile and universal.
The construction material elevator structural parts are made of 16Mn and Q355B high strength steel.
Main structure frame are made of 16Mn and Q355 high strength cold roll steel plate, cut by laser, process by CNC machines in tool fixtures, welded by robots.
The construction lift cage roof is made by a full steel plate, and the edges are totally welded, to ensure no water leakage and high strength.
Technical Data
| Item & Article No. | SC200/200 FIC-08 |
| Number of Cages | 2 Cages |
| Payload Capacity | 2,000 KG each Cage |
| Lifting Speed | 0–46 meter/minute, fully loaded |
| Max. Lifting Height | 250 m / 450 m * |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Cage Doors | Modularized Entrance Door and Discharge Door, and Third Door at the long side of cage |
| Engine Power | 2*15 KW each Cage; 2*2*15 KW Totally. |
| Motor Control | Frequency Control (FC) |
| Invertor Power (KW) | 1*37 KW each Cage; 2*37 KW Totally. |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack Module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
