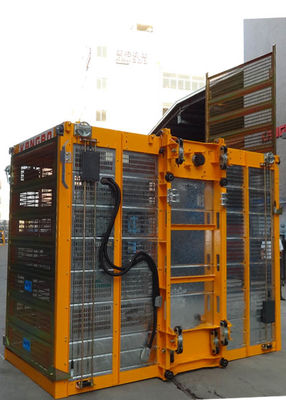

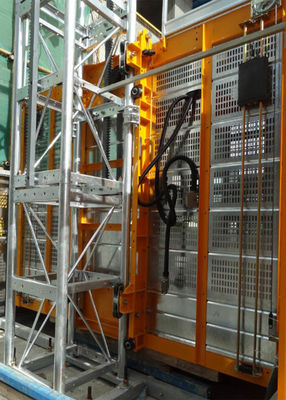

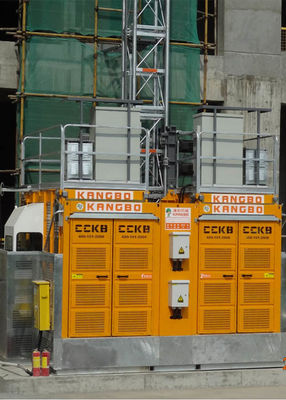

Yellow Color Building Site Hoist 8 Rack Module With Frequency Control Motors

  • Yellow Color Building Site Hoist 8 Rack Module With Frequency Control Motors
  • Yellow Color Building Site Hoist 8 Rack Module With Frequency Control Motors
  • Yellow Color Building Site Hoist 8 Rack Module With Frequency Control Motors
Place of Origin CHINA
Brand Name KANGBO
Certification TUV
Model Number SC200/200
Minimum Order Quantity 1 unit
Price Negotiate
Packaging Details Suitable for export
Delivery Time 30 days
Payment Terms T/T, L/C
Supply Ability 150 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Building Site Hoist Material Q345B Cool Roll Steel Plate
Application Construction Site, Plants, Etc. Production Processed By CNC Machines, Laser, Robots In Assembly Line.
Color Yellow
Highlight

building hoist lift

,

building material hoist
Leave a Message
Product Description

Building Site Hoist with Frequency Control Motors SC200 KP-B07, B08

Design
It is the truly modular rack and pinion hoist design, so the elevator drive devices and cars are generic and interchangeable.

Features and Advantages

The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.

Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
Racks centering at mast reduce partial load torque of builders hoists, makes the construction hoists run more stably and smoothly.
Applying non-eccentric rollers, make the installation of construction site elevators be faster and easier, with much less error.

Technical Data KP-B07, B08
Payload Capacity 2,000 kg
Lifting Speed 0–46 m/min.
Max. Lifting Height 250/400 m*
Cage Width (internal) 1.5 m
Cage Length (internal) 3.2 m
Cage Height (internal) 2.35 m
Motor Control FC control
Engine Power 2x15 kw
Gearbox Helical Reducer
Safety Device Centrifugal Brake
Power Supply Range 380–500 V, 50 or 60 Hz, 3 phase
Mast Section Square column 650*650*1508 mm with bolted rack
Rack Module 8
* Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer.
