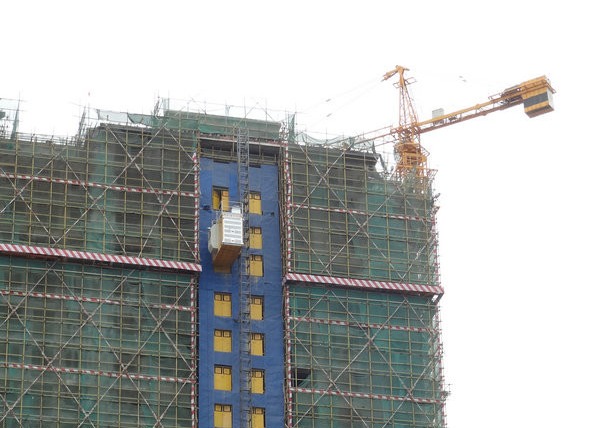

Painted 3000 KG Rack And Pinion Lift Cage Hoist In Construction
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CCC |
| Model Number | Building site hoist rack pinion type SC300BG MP-B15 SC300/300BG MP-B16 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Hoist In Construction | Design | According To European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009. |
|---|---|---|---|
| Load | 3,000 KG Per Cage | Production | Standardized Production, Processed By CNC Machines, Laser, Robots In Assembly Line |
| Drive Mode | Variable Frequency Drive (VFD) | Finishing | Sandblasting And Painted, Galvanised |
| Highlight | rack and pinion Cage Hoist,rack and pinion lift hoist |
||
Product Description
Sandblasting / Painted 3,000 KG Per Cage Finishing Hoist In Construction
Hoist In Construction Production and Materials
KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
The construction material elevator structural parts are made of 16Mn and Q345 high strength steel.
The construction lift cage roof is made by a full steel plate, and the edges are totally welded, to ensure no water leakage and high strength.
Hoist In Construction Configuration
There is a small crane for conenient assembly of the construction lift.
There is the additional 'C' door at cage side for convenient loading/unloading.
Available in single or twin hoist cage configuration.
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
Manual or Automatic Controls of the hoist is optional.
Lighting inside construction elevator car is LED ceiling lamp
The construction material hoist cage roof doors are equipped with Interlock.
Equipped with hoist drop test facility with remote control.
A frequency control unit (FC), with closed-loop, be equipped.
Hoist In Construction Technical Data
| Item & Article No. | SC300BG, MP-B15; SC300/300BG, MP-B16 |
| Payload Capacity | 3,000 KG per Cage |
| Lifting Speed | 0–60 m/min. |
| Max. Lifting Height | 250/400 m* |
| Cage Width (Internal) | 1.5 m |
| Cage Length (Internal) | 3.2 m |
| Cage Height (Internal) | 2.35 m |
| Cage Doors | 3 Doors, Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 3x23 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
