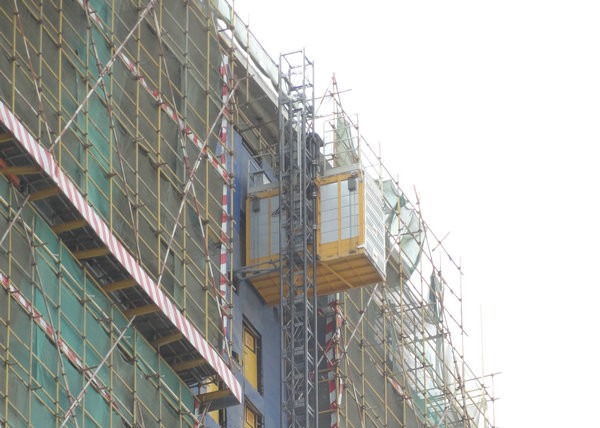

VFC Motor 2 Tons Rack Pinion Lift Hoist For Building Construction
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200(BD) |
| Minimum Order Quantity | Negotiable |
| Price | Negotiating |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Hoist For Building Construction | Material | Cool Roll Steel Plate Q345B |
|---|---|---|---|
| Finish | Galvanised And Painted | Design | Modularized |
| Inverter Brand | Schneider | Motor | VFC Motor |
| Highlight | Construction rack pinion lift,2 tons rack pinion lift |
||
Product Description
VFC Motor 2 Tons Hoist For Building Construction
Hoist For Building Construction Advantage:
* Modular design for easy installation and maintenance.
* Standardized parts and components.
* Variable Frequency Control (VFC), with closed-loop.
* Composite Power & Control Cable, or Busbar.
* Smooth starting/stopping and running without jerk or vibration.
Hoist For Building Construction Platform
1. Larger hoisting height, stronger transportation capacity
2. Equipped with fully safety devices to guarantee the safe working. Stable running and comfortable adaptability.
3.Variable -frequency construction elevator are safe, steady and comfortable.
4. The transmission system adopted three drive motors and three sets of reduction gears.........................
5.Imported Electrical components are adopted for the circuit control system. It is especially reliable and safe becasue of the mechanical overload limiting unit adopted.
6. The close standard section has the superior rust and damp resistance, easy assembly and disassembly.
7. This product has no counter weight, dismantling easily and working safetly.
Hoist For Building Construction Production
All parts and components are processed by CNC machines and robots in tool fixtures.
Parts and components are universal and exchangeable.
| Technical Data | KP-B05, KP-B06 |
| Max. lifting height | 400 m |
| Payload capacity | 2,000 kg |
| Lifting speed | 0–36 m/min. |
| Cage size (internal) | 3.2(L)x1.5(W)*2.35(H) meter |
| Motor control | FC control |
| Engine power | 2x11 kw |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Type of mast | square column 650*650 mm with bolted rack |
| Length mast section | 1.508 m |
| Rack module | 8 |
