Q355B Steel Material Construction Passenger Hoist , SC200/SC200 Goods Hoist Lift
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200BG KP-B07 KP-B08 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate |
| Packaging Details | export package |
| Delivery Time | 30 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item | Construciton Site Hoist SC200/SC200 Rack And Pinion Type Lifter KP-B09, KP-B10 | Material | Q355B Steel |
|---|---|---|---|
| Finishing | Sandblasting, Painted And Galvanised | Color | Yellow |
| Application | Vertical Transportation Of Man And Materials In Construction Site Or Building Site. | Description | Construction Site Hoist |
| Motor Control | VFC (Variable Frequency Control) | Working Mode | Mast Climbing |
| Highlight | temporary construction elevators,construction passenger hoist |
||
Product Description

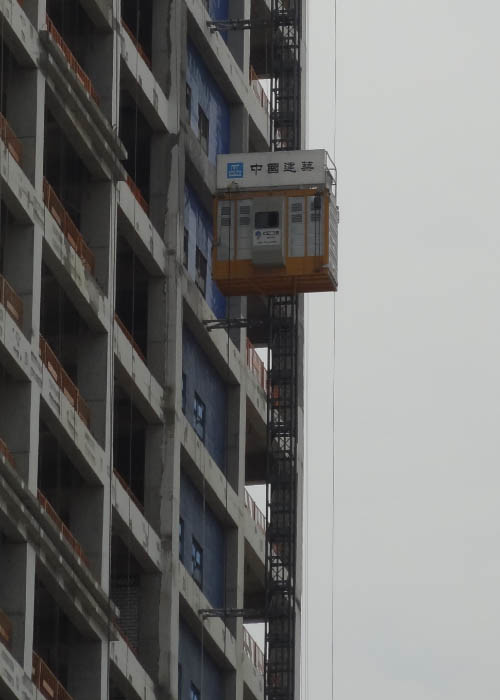

Construciton Site Hoist SC200/SC200 Rack and Pinion Type Lifter KP-B07, KP-B08
Standard Configuration
There is a small crane for conenient assembly of the construction lift.
Available in single or twin hoist cage configuration.
The Variable Frequency Drive (VFD) construction elevator are with low starting current and much less wear and tear, very smooth starting and stopping.
There is LED lighting inside construction elevator car.
Lighting inside construction elevator car is LED ceiling lamp
The construction material hoist cage roof doors are equipped with Interlock.
Equipped with hoist drop test facility with remote control.
A frequency control unit (FC), with closed-loop, be equipped.
Optional Configuration
* Rack and pinion elevator cage flap door as loading/unloading ramp.
* Sliding Contact Line (Integrated Conductive Rail or Busbar) specially for rack and pinion lifts.
Technical Data
| Item | SC200, SC200/200 Rack and Pinion Lift KP-B07, KP-B08 |
| Payload Capacity | 2,000 kg |
| Lifting Speed | 0–46 m/min. |
| Max. Lifting Height | 450 m |
| Cage Width (internal) | 1.5 m |
| Cage Length (internal) | 3.2 m |
| Cage Height (internal) | 2.35 m |
| Motor Control | Frequency Control |
| Engine Power | 2x15 kw |
| Gearbox | Helical Gearbox of KANGBO Make |
| Safety Device | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 phase |
| Mast Section | Square column 650*650*1508 mm with bolted rack |
| Rack Module | 8 |
| * Increased lifting height on request. 400 m with step-up/step-down transformer. | |
