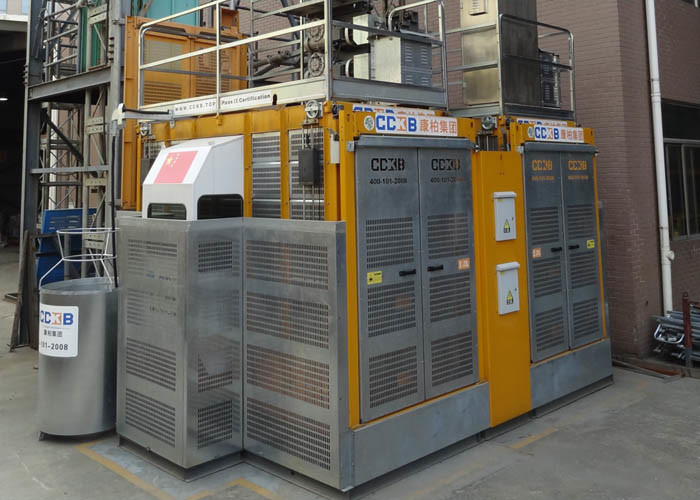

Rack And Pinion LED Lighting SC300 Construction Site Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, ISO |
| Model Number | SC200/200(BD) |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiate |
| Packaging Details | 1 unit 60meter high single cage hoist/1*40'HQ container |
| Delivery Time | 15-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 200 Units per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item | Construciton Hoist SC200/SC200 Rack And Pinion Type Lifter KP-B05,B06 | Material | Q355B Steel |
|---|---|---|---|
| Application | Vertical Transportation Of Man And Materials In Construction Site Or Building Site. | Description | SC300 Construction Site Hoist |
| Production | Standardized Production | Finishing | Sandblasting And Baking Finish |
| Highlight | 400m Construction Site Hoist,36m / min Construction Site Hoist |
||
Product Description
Construciton Hoist SC200/SC200 Rack and Pinion Type Lifter KP-B05,B06
Unique Features of KANGBO Hoist
* Truly modular design.
* Apply high efficiency and energy-saving gear reducer
* Racks set in the center of mast to reduce Partial load torque, and make the machine run more stably and smoothly.
* Apply non-eccentric rollers.
* Unique flap door for loading/unloading ramp.
* Side open enclosure gate, which is convenient for using and reliable.
Technical Data
| Item | KP-B05, KP-B06 |
| Payload capacity | 2,000 kg |
| Lifting speed | 0–36 m/min. |
| Max. lifting height | 400m |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | FC control |
| Engine power | 2x11 kw |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | square column 650*650 mm with bolted rack |
| Length mast section | 1.508 m |
| Rack module | 8 |

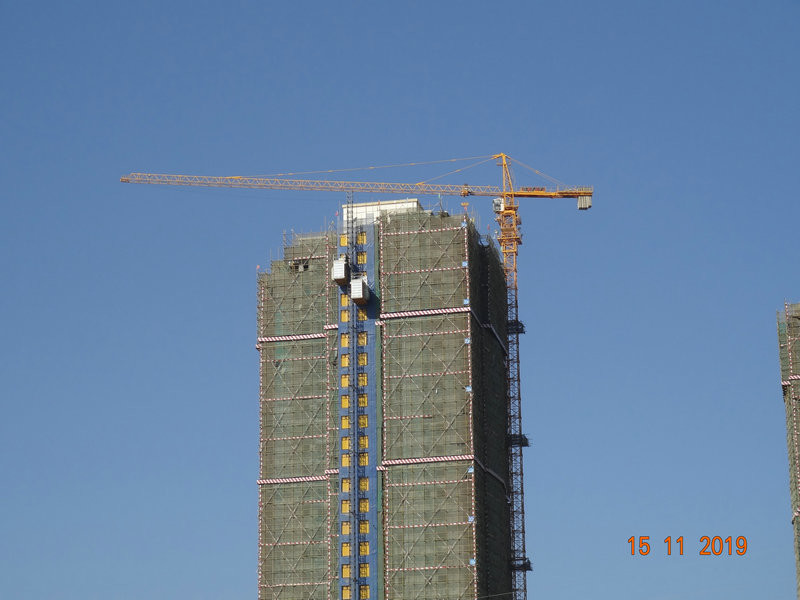

KANGBO Builders Hoist in Tangerang, Indonesia
