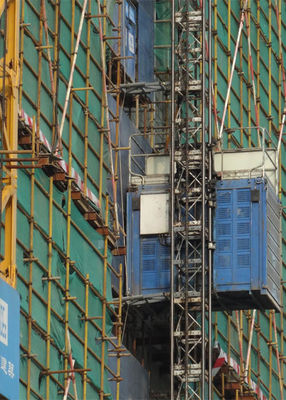

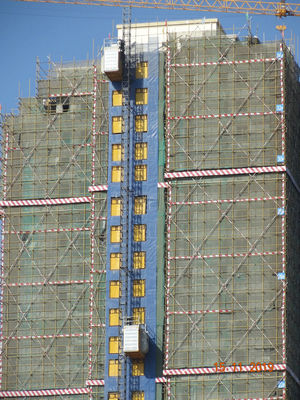

SC200-200 Rack Pinion Type 450M Construction Site Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200BG KP-B11 SC200-200BG KP-B12 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate |
| Packaging Details | Export package |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Construction Site Hoist | Application | Construction Site, Building Site, Bridges, Chimney, Plants, Etc. |
|---|---|---|---|
| Design | Truly Modular Design | Material | Q355B Cool Roll Steel Plate |
| Processing | Cut By Laser, Processed By CNC Machines In Tool Fixtures. | Finishing | Sandblasting, Painted And Galvanised |
| Motor Control | Frequency Control (FC) | Description | SC200/200 Outdoor Material Transport Platform |
| Highlight | Rack & Pinion Material Hoists,450m rack & pinion hoist |
||
Product Description
Construction site hoist rack pinion SC200BG KP-B11 SC200-200BG KP-B12
Production and Materials
Implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production.
Apply best quality materials and components.
Features
Truly modular design
This material elevator components is standard and universal.
Smooth running, long work life
Certificate
TUV proved according to European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009.
Technical Data
| Item & Article No. | SC200BG, KP-B11; SC200/200BG, KP-B12 |
| Payload Capacity | 2,000KG per Cage |
| Lifting Speed | 0–60 meter/minute. |
| Max. Lifting Height | 450 m |
| Cage Size (internal) | 3.2(Length)*1.5((Width)*2.35(Height) meter |
| Motor Power | 3x15 KW per Cage |
| Motor Control | Frequency Control (FC) |
| Invertor Power (KW) | 1*55KW per Cage |
| Gearbox | PIELI Helical Gearbox |
| Anti-drop Safety Device | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack module | 8 |
