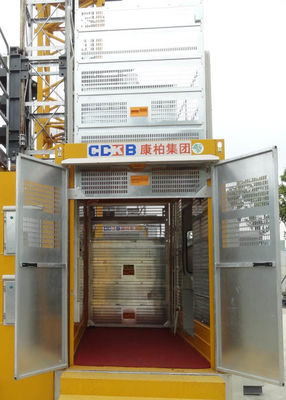

Rack And Pinion Construction Site Hoist Yellow Color SC300BG / KP-B15 / KP-B16
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Construction site hoist SC300BG KP-B15 SC300/300BG KP-B16 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate |
| Packaging Details | export package |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Construction Site Hoist | Application | Vertical Transportation At Construction Site |
|---|---|---|---|
| Material | Q345B | Production | Standardized Production |
| Finishing | Sandblasting And Painted, Galvanised | Color | Yellow |
| Highlight | construction passenger hoist,goods hoist lift |
||
Product Description
Construction site rack and pinion hoist SC300BG KP-B15 SC300/300BG KP-B16
Standard Configuration
There is a small crane for conenient assembly of the construction lift.
Available in single or twin hoist cage configuration.
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
There is LED lighting inside construction elevator car.
Optional Configuration
* Rack and pinion elevator cage flap door as loading/unloading ramp.
* Sliding Contact Line (Integrated Conductive Rail or Busbar) specially for rack and pinion lifts.
* Manual or Automatic Controls of the hoist is optional.
Technical Data
| Item & Article No. | SC300BG, KP-B15; SC300/300BG, KP-B16 |
| Payload capacity | 3,000 kg |
| Lifting speed | 0–60 m/min. |
| Max. lifting height | 250/400 m* |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | Frequency Control |
| Engine power | 3x23 kw |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Mast Section | Square column 650*650*1508 mm with bolted rack |
| Rack module | 8 |
