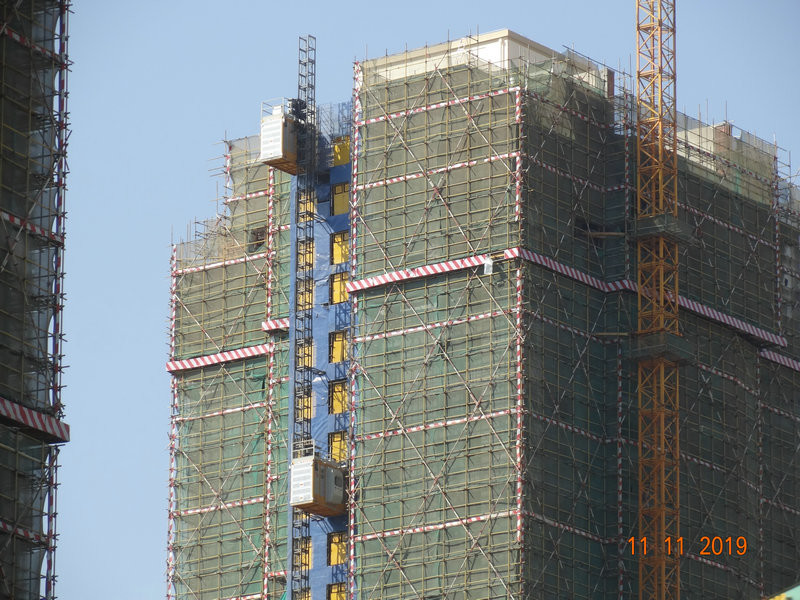

Rack And Pinion Heavy Payload SC250BG KP-B19 Construction Site Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC250BG KP-B19 |
| Minimum Order Quantity | 1 set |
| Price | In U S dollar |
| Packaging Details | Export package |
| Delivery Time | 30 days afterd receipt of down payment or L/C |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 set |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Description | Construction Site Hoist Rack And Pinion High Speed Heavy Payload KP-B19 | Model | SC250(BG) KP-B19 |
|---|---|---|---|
| Application | Vertical Transportation Of Man And Materials In Construction Site | Design | Modular Design And According To EU Standard |
| Material | Q345B Steel | Finishing | Sandblasting And Paint, Galvanised |
| Highlight | Construction Site Rack And Pinion Hoist,Construction Site rack & pinion Hoist |
||
Product Description
Construction site hoist rack and pinion high speed heavy payload SC250BG KP-B19
Production and Materials
KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
Main structure frame are made of 16Mn and Q345 high strength cold roll steel plate, cut by laser, process by CNC machines in tool fixtures, welded by robots.
The construction lift cage roof is made of a full steel plate, and the edges of the roof are totally welded by robot, to ensure never water leakage and higher strength of the construction hoist cage.
Standard Configuration
There is a small crane for conenient assembly of the construction lift.
In single cage configuration.
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
Technical Data
| Item & Article No. | SC250(BG) KP-B19 |
| Payload Capacity | 2,500 KG per Cage |
| Lifting Speed | 0–80 m/min. |
| Max. Lifting Height | 250/450 m* |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Motor Control | FC control |
| Engine Power | 3x38 KW per Cage |
| Gearbox | Helical Reducer |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
| * Increased lifting height on request. 400 m with step-up/step-down transformer. | |
| Optional Configuration | ||
| Power Supply | Slide Contact Line System (Busbar) | |
| Floor Selection | Multi-functional Control System (Floor selector, Automatic Landing, Error Detection and Display, etc.) | |
| TUV proved according to European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009. | ||
