Flexible SC200BD 36 M / Min Passenger Material Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Construction Site Rack and Pinion Hoist SC200BD MP-B05 SC200/200BD MP-B06 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate in USD |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item | Construction Site Rack And Pinion Hoist SC200BD MP-B05 SC200/200BD MP-B06 | Application | Vertical Transportation Of Man And Materials In Construction Site |
|---|---|---|---|
| Design | European Regulation | Material | Q345B Steel |
| Production | As Per EN 12159:2012, EN 60204-1:2006/A1:2009. | Color | Yellow |
| Highlight | 36 M / Min Construction Site Hoist,rack and pinion lift system |
||
Product Description

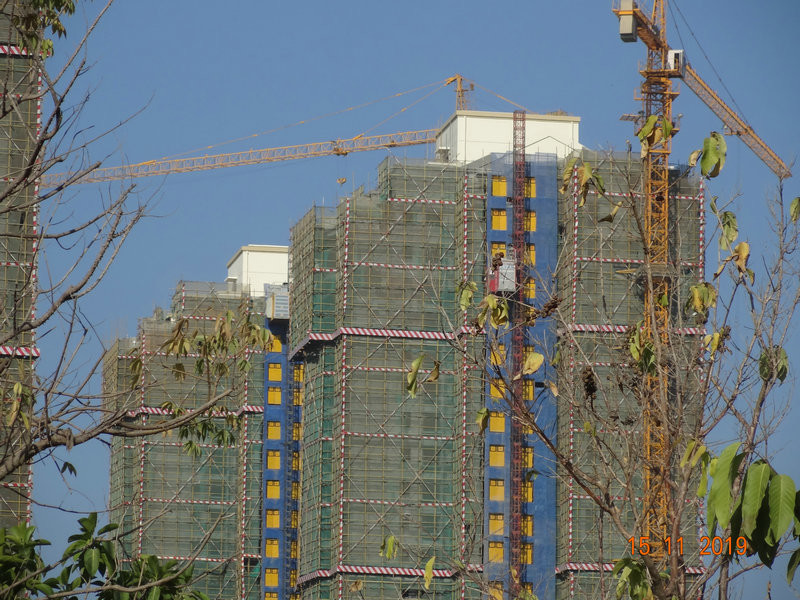

Construction Site Rack and Pinion Hoist SC200BD MP-B05 SC200/200BD MP-B06
Features and Advantages
* The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
* The construction site hoist runs without vibration or trembling. The man and material lift starts and stops without surging or jerking.
* The passenger and elevator is reliable with very little breakdown and is durable with very long work-life.
* Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
* Racks centering at mast reduce partial load torque of builders hoists, makes the construction hoists run more stably and smoothly.
* Applying non-eccentric rollers, make the installation of construction site elevators be faster and easier, with much less error.
* The integrated elevator car roof, which made by a steel plate with edges fully welded one time to complete, enhance hoist cage strength and ensure no water leakage.
* The additional big size third door at the cage side let the users to use fork trucks to load/unload extremely heavy and big size materials.
* Certified safety braking system of rack and pinion hoist.
* The material elevator car frame is enlarged and strengthened.
* The elevators are equipped with full set of safety facilities, including centrifugal brake, limit switches, Electromechanical interlocks.
Certificate
TUV proved according to European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009.
Technical Data
| Item & Article No. | SC200BD, MP-B05; SC200/200BD, MP-B06 |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–36 m/min. |
| Max. Lifting Height | 450 m |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Cage Doors | 3 Doors per Cage; Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 2x11 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack Module | 8 |
