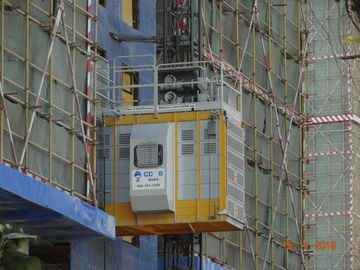

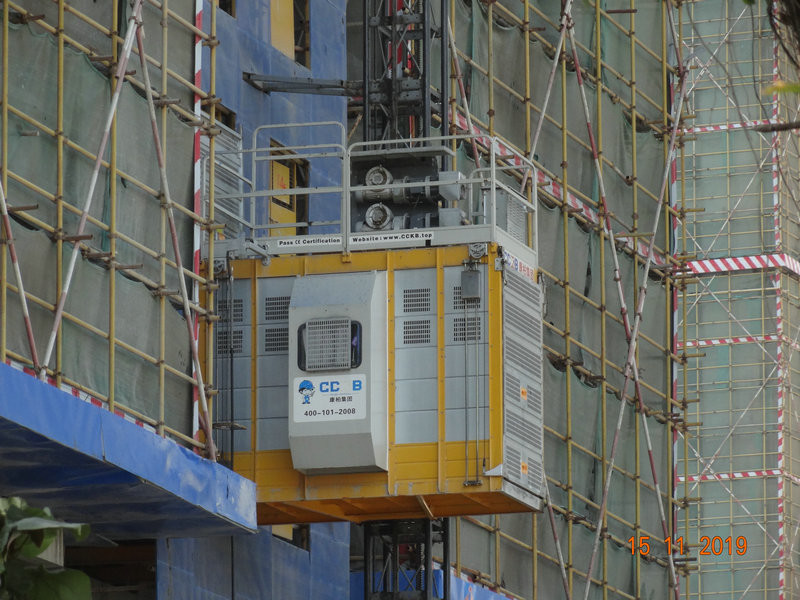

VFD Rack Pinion Lift For Construction Materials and passengers
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200BG KP-B09, KP-B10 |
| Minimum Order Quantity | 1 set |
| Price | negotiate |
| Packaging Details | export package |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C, |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Lift For Construction Materials | Application | Construction Site, Building Site, Factories |
|---|---|---|---|
| Material | Q345B Steel | Process | Processed By CNC Machines, Laser, Robots In Assembly Line. |
| Finishing | Sandblasting, Painted And Galvanised | Drive | VFD |
| Working Type | Rack And Pinion | Mast Type | Square Column With Rack Bolted |
| Highlight | rack and pinion hoist,rack & pinion vfd lift |
||
Product Description
VFD Q345B Steel Lift For Construction Materials
Lift For Construction Materials Introduction
This product absorbs advanced technology at home and abroad, is novel in design, simple in operation and convenient to dismantle and repair. Its safety design and configuration is fully in conformity with national standards. It is mainly suitable for bridge, chimney, building and other high-rise building builders and cargo transportation, and can also be used in warehouses, wharfs and other places where vertical transportation needs to be used.
Standard Configuration
There is a electrical small crane available to facilitate the assembly of columns and doors on the floors.
Available in single or twin hoist cage configuration.
The Variable Frequency Drive (VFD) construction elevator are with low starting current and much less wear and tear, very smooth starting and stopping.

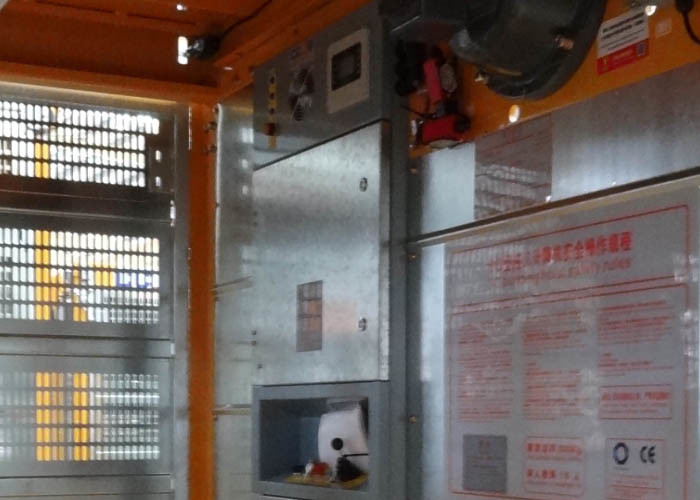

Lighting inside construction elevator car is LED ceiling lamp
The construction material hoist cage roof doors are equipped with Interlock.
Equipped with hoist drop test facility with remote control.
Manual or Automatic Controls of the hoist is optional.
| Technical Data | Construction Material Hoist Rack Pinion Elevator SC200/200BG KP-B09B10 |
| Payload capacity | 2,000 kg |
| Lifting speed | 0–60 m/min. |
| Max. lifting height | 250/400 m* |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | FC control |
| Engine power | 2x23 kw/87Hz |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | square column 650*650 mm with bolted rack |
| Length mast section | 1.508 m |
| Rack module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
