Helical Gearaboxes Builders 450M Construction Material Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CCC |
| Model Number | Construction rack and pinion material hoist SC200BD, MP-B05; SC200/200BD, MP-B06 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate in USD |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Material Hoist Lift | Max Height | 450 M |
|---|---|---|---|
| Design | Modular | Material | Q355B Steel |
| Production | Standardized Production, Processed By CNC Machines, Laser, Robots In Assembly Line. | Gearaboxes | Helical Gearaboxes |
| Highlight | 450m builders hoist,rack and pinion hoist |
||
Product Description

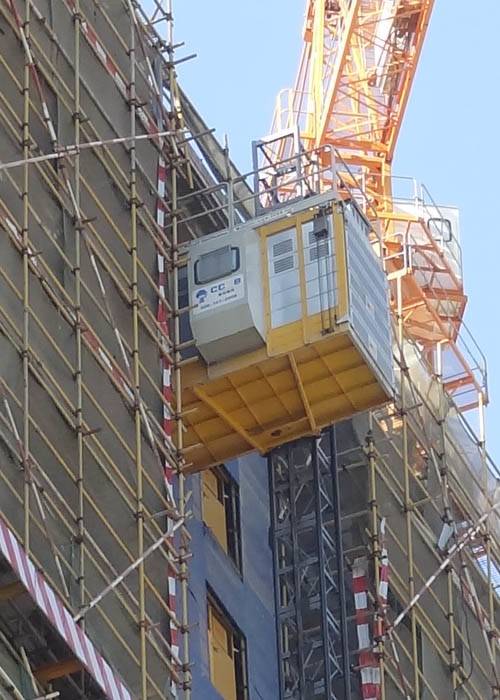

Helical Gearaboxes 450 M Construction Material Hoist
Construction Material Hoist Description
The load capacity of building hoist can reach 3200kgs; the lifting speed can reach 96m/min, and the max height can be as high as 450m. The hoists are widely used in construction site, power projects, metallurgical, mining,oil and chemical industries. Hollisworth also can design and produce the specialkinds of lifting equipments upon the clients; requirements or special condition on the working site.
Production and Materials
KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
The construction material elevator structural parts are made of 16Mn and Q355B high strength steel.
The construction lift cage roof is made by a full steel plate, and the edges are totally welded, to ensure no water leakage and high strength.
Construction Material Hoist Configuration
There is a small crane for conenient assembly of the construction lift.
There is additional 'C' door at the long side of cage for convenient loading/unloading is available.
Available in single or twin hoist cage configuration.
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
Manual or Automatic Controls of the hoist is optional.
There is LED lighting inside construction elevator car.
Construction Material Hoist Technical Data
| Item & Article No. | SC200BD, MP-B05; SC200/200BD, MP-B06 |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–36 m/min. |
| Max. Lifting Height | 450 m |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Cage Doors | 3 doors, Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 2x11 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
