Variable Frequency Control 2t Personnel Rack And Pinion Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200, SC200/200 KP-B07, B08 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiate |
| Packaging Details | one 40'HQ container for 1 set 60 meter high single cage hoist |
| Delivery Time | 30 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 150 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Hoist Lifting Equipment | Color | Customized |
|---|---|---|---|
| Design | Modular | Control | Variable Frequency Control |
| Application | Construction | Purpose | Vertical Transportation |
| Highlight | 2t personnel hoist,Rack Pinion personnel hoist |
||
Product Description

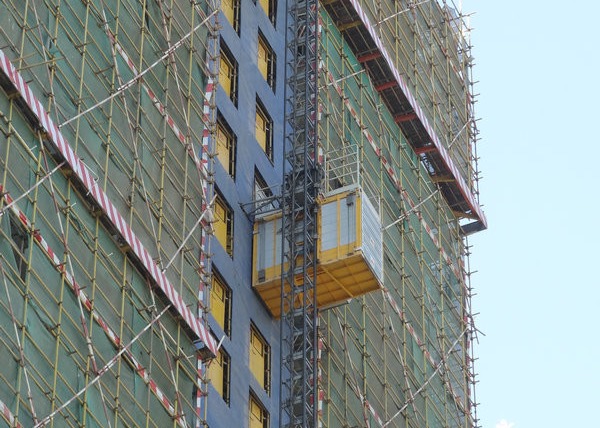

Variable Frequency Control 2t Hoist Lifting Equipment
Hoist Lifting Equipment Production and Materials
KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
The construction material elevator structural parts are made of 16Mn and Q345 high strength steel.
Hoist Lifting Equipment Features
Apply world famous inverter, and electrical appliances
Side open ground enclosure doors that are convenient for using and reliable.
FC control motors
Apply high efficiency and energy-saving helical gearbox
Multiple choice of cage doors.
Smooth running, no jerk, no vibration.
- Hoist Lifting Equipment Parameters
| Technical Data | KP-B07, B08 |
| Payload capacity | 2,000 kg |
| Lifting speed | 0–46 m/min. |
| Max. lifting height | 250/400 m* |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | FC control |
| Engine power | 2x15 kw |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | square column 650*650 mm with bolted rack |
| Length mast section | 1.508 m |
| Rack module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
