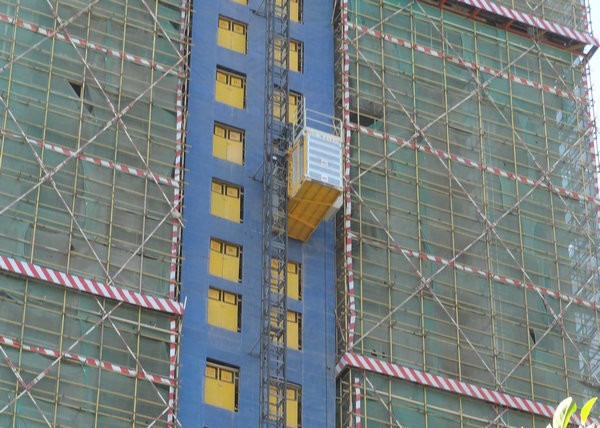

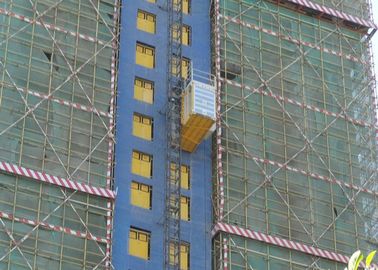

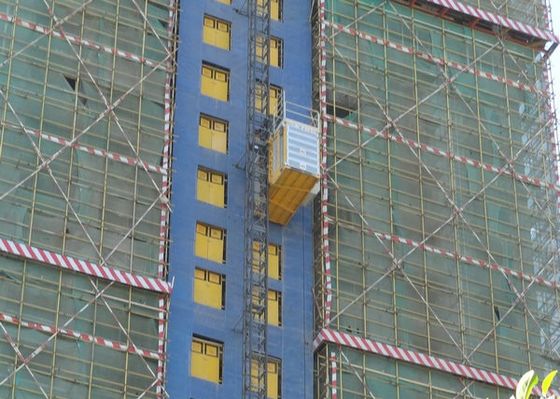

Modular 2000KG Per Cage Rack & Pinion Construction Hoist Elevator
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CCC |
| Model Number | Construction material hoist rack and pinion SC200BZ MP-B07 SC200/200BZ MP-B08 |
| Minimum Order Quantity | 1 set |
| Price | In USD |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month 25-30 days |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Construction Hoist Elevator | Design | Modular Design |
|---|---|---|---|
| Material | Q345B Cool Roll Steel Plates | Production | EN 60204-1:2006/A1:2009. |
| Finishing | Sandblasting And Paint | Color | Customized |
| Highlight | rack & pinion hoist,2000kg Construction Hoist Elevator |
||
Product Description
Modular Design 2000 KG Per Cage Construction Hoist Elevator
Construction Hoist Elevator Production and Materials
KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The construction material elevator components are versatile and universal.
The construction material elevator structural parts are made of 16Mn and Q345 high strength steel.
The construction lift cage roof is made by a full steel plate, and the edges are totally welded, to ensure no water leakage and high strength.
Construction Hoist Elevator Features and Advantages
* The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
* The material hoist runs without vibration or trembling. The man and material lift starts and stops without surging or jerking.
* The passenger and elevator is reliable with very little breakdown and is durable with very long work-life.
* Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
Construction Hoist Elevator Technical Data
| Item & Article No. | SC200BZ, MP-B07; SC200/200BZ, MP-B08 |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–46 m/min. |
| Max. Lifting Height | 250/400 m* |
| Cage Width (Internal) | 1.5 m |
| Cage Length (Internal) | 3.2 m |
| Cage Height (Internal) | 2.35 m |
| Cage Doors | 3 Doors, Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 2x15 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
