EN 12159 2012 Builders Rack Pinion Construction Material Hoist

Place of Origin CHINA
Brand Name KANGBO
Certification TUV, CCC
Model Number Construction material hoist rack and pinion SC200BZ MP-B07 SC200/200BZ MP-B08
Minimum Order Quantity 1 set
Price In USD
Packaging Details Export package
Delivery Time 25-30 days
Payment Terms T/T, L/C
Supply Ability 150 sets per month 25-30 days

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Construction Material Hoist Feature Efficient
Material Q345B Cool Roll Steel Plates Production As Per EN 12159:2012, EN 60204-1:2006/A1:2009.
Finishing Sandblasting And Paint Color Multi Colored
Highlight

rack and pinion hoist

,

rack and pinion lift

Leave a Message
Product Description

Efficient EN 12159:2012 Construction Material Hoist

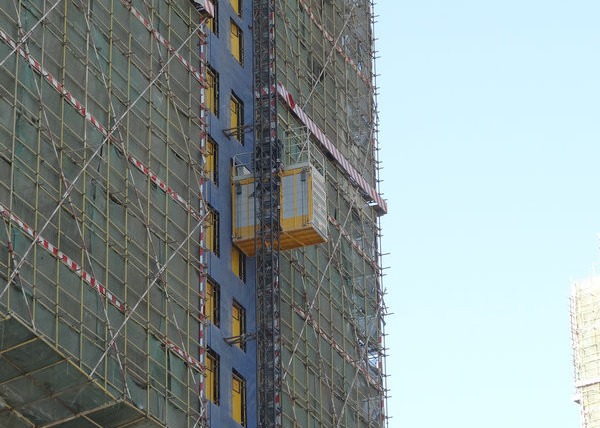

Construction Material Hoist Application



We are special supplier of building hoist in China, our building hoist have been Widely exported to all over the world and won good reputation, whose payload capacity is as much as 5000kg, lifting speed can reach up to 96m/min, and the erection height reaches up to 550m., our products have been widely used for transportation for both men and cargo in field of general buildings, but also industry, electric power, mining well, oil, chemical industry etc.



Construction Material Hoist Features and Advantages


* The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
* The material hoist runs without vibration or trembling. The man and material lift starts and stops without surging or jerking.
* The passenger and elevator is reliable with very little breakdown and is durable with very long work-life.
* Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.



Construction Material Hoist Technical Data



Item & Article No. SC200BZ, MP-B07; SC200/200BZ, MP-B08
Payload Capacity 2,000 KG per Cage
Lifting Speed 0–46 m/min.
Max. Lifting Height 250/400 m*
Cage Width (Internal) 1.5 m
Cage Length (Internal) 3.2 m
Cage Height (Internal) 2.35 m
Cage Doors 3 Doors, Entry Door + Exit Door + Side Door
Motor Control FC (Frequency Control)
Engine Power 2x15 KW per Cage
Gearbox Helical Gearbox
Safety Device Type Centrifugal Brake
Power Supply Range 380–500 V, 50 or 60 Hz, 3 Phase
Mast Section Square Column 650*650*1508 mm with Bolted Rack
Rack module 8
* Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer.



EN 12159 2012 Builders Rack Pinion Construction Material Hoist 0
