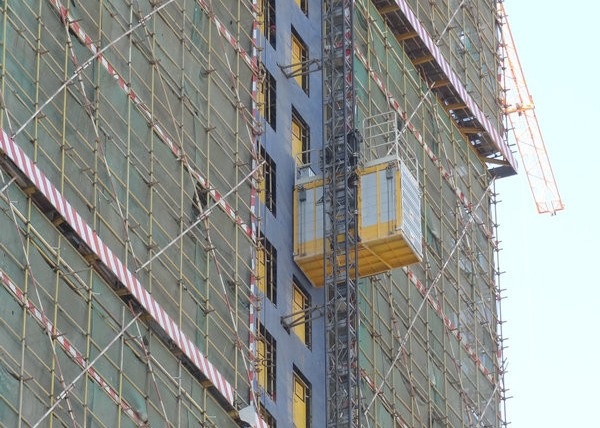

60 Meter / Minute Rack And Pinion Lift For Building Construction
| Model Number | hoist for building construction |
|---|---|
| Minimum Order Quantity | 1 set |
| Price | Negotiate |
| Packaging Details | Suitable for Export |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Hoist For Building Construction | Application | Vertical Transportation Of Man And Materials In Construction Site Or Building Site, Bridges, Chimney, Plants, Etc.. |
|---|---|---|---|
| Feature | High Safety | Production | Processed By CNC Machines, Laser, Robots In Assembly Line |
| Material | Q345B Steel | Finishing | Sandblasting And Painted, Galvanised |
| Highlight | 60 Meter / Minute Construction Material Hoist,rack and pinion lift system |
||
Product Description
High Safety 60 Meter/Minute Hoist For Building Construction
Production advantage:
1. Adopting advanced technology both at home and abroad,SC series construction elevator is novel in design,resonable in structure,simple in operation,covenient in assembly and disassembly,safe and reliable in working.
2. The unit incorporates famous brand electric components and main parts in transmission mechanism.The steel structure is made of high-quality steel material and welded with CO2 gas shield welding.Surface paint is made with imported raw materials in brmiant ,long lasting colors.
3. The unit is provided with reliable safety interlock devices,safety switch,breakage protection switch,upper and lower limits and limit switches ,etc,Progressive dropping safety devices and safety protection hook are provided.
4. The safety design and configuration fully comply to national standards.
Details
The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
Production and Materials
KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
The construction material elevator structural parts are made of 16Mn and Q345 high strength steel.
Parameters
| Item & Article No. | SC200BG, KP-B11; SC200/200BG, KP-B12 |
| Payload Capacity | 2,000KG per Cage |
| Lifting speed | 0–60 meter/minute. |
| Max. lifting height | 450 m |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | FC control |
| Engine power | 3x15 KW per Cage |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | square column 650*650 mm with bolted rack |
| Length mast section | 1.508 m |
| Rack module | 8 |
