FC Control Motors 2 Ton Construction Material Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200, SC200/200 KP-B07, B08 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiate |
| Packaging Details | one 40'HQ container for 1 set 60 meter high single cage hoist |
| Delivery Time | 30 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 150 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Construction Material Hoist | Color | Any Color Available |
|---|---|---|---|
| Design | Modular | Control | FC Control |
| Application | Construction | ||
| Highlight | 2t Construction Material Hoist,rack and pinion lift |
||
Product Description
FC Control Motors 2 Ton Construction Material Hoist
Construction Material Hoist Introduction

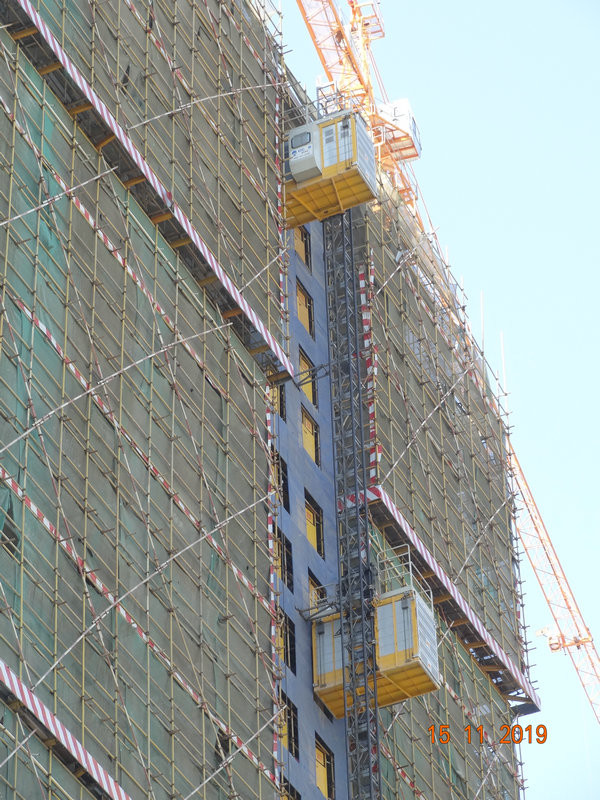

Construction Material Hoist is driven by rack and pinion, used on construction site for transportation of personnel and materials. Hoist function degree is A8. It is installed and dismounted conveniently and can grow as high as the building grow in height. This hoist has reliable electrical and mechanical safety device. It's efficient and safety vertical transporting equipment.
Construction Material Hoist Features
Apply world famous inverter, and electrical appliances
Side open ground enclosure doors that are convenient for using and reliable.
FC control motors
Apply high efficiency and energy-saving helical gearbox
Multiple choice of cage doors.
Smooth running, no jerk, no vibration.
Parameters
| Technical Data | KP-B07, B08 |
| Payload capacity | 2,000 kg |
| Lifting speed | 0–46 m/min. |
| Max. lifting height | 250/400 m* |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | FC control |
| Engine power | 2x15 kw |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | square column 650*650 mm with bolted rack |
| Length mast section | 1.508 m |
| Rack module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
