3 Doors Bridge 60 M / Min Construction Material Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CCC |
| Model Number | Construction Material Hoist |
| Minimum Order Quantity | 1 set |
| Price | Negotiate |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Construction Material Hoist | Design | According To European Regulation |
|---|---|---|---|
| Doors | 3 Doors | Material | Q345B Steel |
| Processing | Processed By CNC Machines, Robots | Color | Yellow Color |
| Highlight | rack and pinion hoist,rack and pinion lift |
||
Product Description

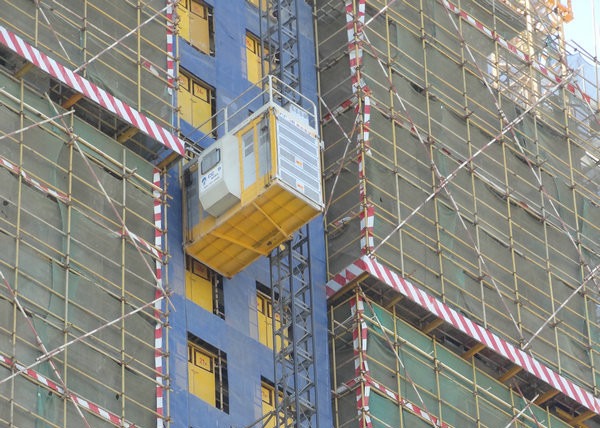

Yellow Color 3 Doors Construction Material Hoist
Construction Material Hoist Introduction
This product absorbs advanced technology at home and abroad, is novel in design, simple in operation and convenient to dismantle and repair. Its safety design and configuration is fully in conformity with national standards. It is mainly suitable for bridge, chimney, building and other high-rise building builders and cargo transportation, and can also be used in warehouses, wharfs and other places where vertical transportation needs to be used.
Optional Configuration
Rack and pinion elevator cage flap door as loading/unloading ramp.
Sliding Contact Line (Integrated Conductive Rail or Busbar) specially for rack and pinion lifts.
An intelligent elevator control system, Multi-function Control System, with functions of fault detect, display and alarm, and automatic cage landing/stop and floor selector, is available.
Automatic greasing machine for rack and pinion elevator is availble.
Technical Data
| Item & Article No. | SC200BG, MP-B09; SC200/200BG, MP-B10 |
| Payload Capacity | 2000 KG per Cage |
| Lifting Speed | 0–60 m/min. |
| Max. Lifting Height | 450 m |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Cage Doors | 3 Doors, Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 2x23 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
