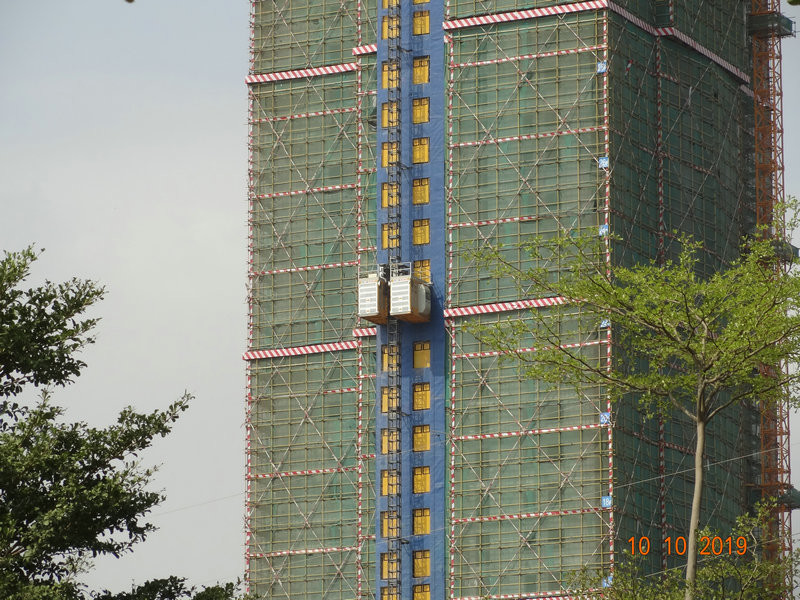

Sandblasting Two Cabin 250m Construction Site Elevator
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CCC |
| Model Number | Building site hoist rack pinion type SC300BG MP-B15 SC300/300BG MP-B16 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Construction Site Elevator | Design | According To European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009. |
|---|---|---|---|
| Material | Q345B Steel | Cabin | Two Cabin |
| Drive Mode | Variable Frequency Drive (VFD) | Finishing | Sandblasting And Painted, Galvanised |
| Highlight | 250m Construction Elevator,rack pinion lift Construction Elevator |
||
Product Description
Sandblasting / Painted Finishing Two Cabin Construction Site Elevator
Construction Site Elevator Main Features
1) rely on motor drive gear, rolling up and down on the gear.
2) advanced technology at home and abroad, with novel design, reasonable structure, simple operation and easy maintenance.
3) the use of famous brands at home and abroad
4)With perfect pre-sale, sale, and after sale service
Construction Site Elevator Configuration
There is a small crane for conenient assembly of the construction lift.
There is the additional 'C' door at cage side for convenient loading/unloading.
Available in single or twin hoist cage configuration.
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
Manual or Automatic Controls of the hoist is optional.
Lighting inside construction elevator car is LED ceiling lamp
The construction material hoist cage roof doors are equipped with Interlock.
Equipped with hoist drop test facility with remote control.
A frequency control unit (FC), with closed-loop, be equipped.
Construction Site Elevator Technical Data
| Item & Article No. | SC300BG, MP-B15; SC300/300BG, MP-B16 Construction Site Elevator |
| Payload Capacity | 3,000 KG per Cage |
| Lifting Speed | 0–60 m/min. |
| Max. Lifting Height | 250/400 m* |
| Cage Width (Internal) | 1.5 m |
| Cage Length (Internal) | 3.2 m |
| Cage Height (Internal) | 2.35 m |
| Cage Doors | 3 Doors, Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 3x23 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
