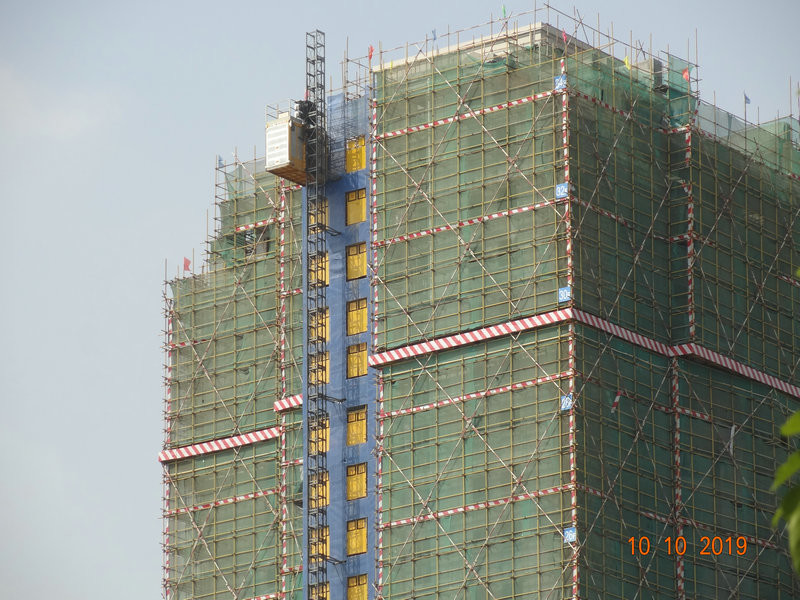

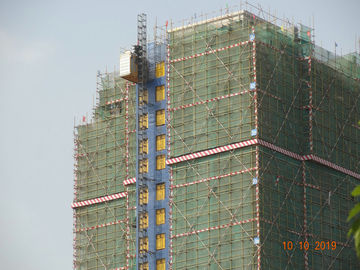

Vertical Transportation Single Cage 2000KG Building Site Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Building site hoist SC200BG KP-B11 SC200/200BG KP-B12 |
| Minimum Order Quantity | 1 set |
| Price | In US Dollar |
| Packaging Details | Export package |
| Delivery Time | 30 Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Building Site Hoist | Application | Vertical Transportation |
|---|---|---|---|
| Design | Modular And According To European Standard | Production | Processed By CNC Machines, Laser, Robots In Assembly Line. |
| Finishing | Sandblasting And Painted, Galvanised | Load | 2,000KG |
| Highlight | 2000kg Single Cage hoist,2000kg building hoist |
||
Product Description
Vertical Transportation Single Cage 2,000KG Building Site Hoist
Building Site Hoist Manufacturing Technique
1. Guide rail system
Guide rail system made of 20# steel that is 4.5mm thick.
2. Gear rack
The gear rack is made of 55# steel and its service life is more than 10 years.
3. Power system
The operating time of the construction hoist is 10 to 15 years.
4. Safety devices
a. Fall arrest device
b. Loading capacity limiter
c. Limit switch
d. Upper limit protection device
e. Lower limit protection device
f. Door limit protection device
g. Escaping window limit protection device
h. Bell warning device
i. Emergency stop protection device
j. Buffering protection device
k. Motor overload protector
l. Transformer short-circuit protection device
m. Phase sequence protection device
5. Cable
We employ genuine GB cable that is guaranteed on quality.
6. Electrical system
The main devices in the electrical system are all Name Brands, like Schneider, Siemens.
a. The fan installed helps dissipate the heat effectively.
b. With a time delay relay, the construction lift can stop smoothly and steadily.
c. Alarm bell informs users of the starting of the fall arrest device.
d. Failure warning light will send light signals when there is a failure of the motor or electrical system.
7. Protection fence
The outside fence and fence gate are built with plastic-sprayed perforated plate.
8. Additional scaling ladder
For each construction hoist, two scaling ladders are added to the drive system to ensure more convenient and flexible
installation.
9. Frequency conversion system (optional)
a. Floor selecting function
b. Precise distance for stopping at a layer
c. Protection of gears and racks
d. Gear shifts can be settled to control the lifting speed
e. The passenger hoist can start and stop stably at constant speed with little noise.
Building Site Hoist Parameters
| Item & Article No. | SC200BG, KP-B11; SC200/200BG, KP-B12 |
| Payload Capacity | 2,000KG per Cage |
| Lifting Speed | 0–60 meter/minute. |
| Max. Lifting Height | 450 m |
| Cage Size (internal) | 3.2(Length)*1.5((Width)*2.35(Height) meter |
| Motor Power | 3x15 KW per Cage |
| Motor Control | Frequency Control (FC) |
| Invertor Power (KW) | 1*55KW per Cage |
| Gearbox | PIELI Helical Gearbox |
| Anti-drop Safety Device | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack module | 8 |
