Modular 3000Kg Rack & Pinion Hoist For Building Construction
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC300BG KP-B15 SC300-300BG KP-B16 |
| Minimum Order Quantity | 1 set |
| Price | negotiate |
| Packaging Details | Export package |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Hoist For Building Construction | Application | Construction Site, Building Site |
|---|---|---|---|
| Design | Modular | Material | Q345B |
| Load | 3000Kg | Finishing | Sandblasting And Painted, Galvanised |
| Highlight | modular rack & pinion hoist,3000kg Hoist For Building |
||
Product Description
Modular Design 3000Kg Hoist For Building Construction
Hoist For Building Construction Introduction

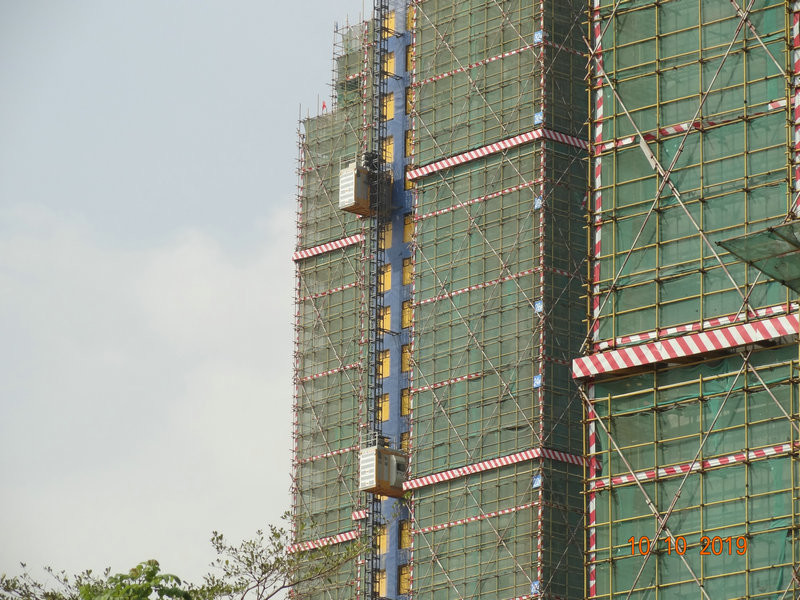

SC series construction hoist is driven by rack and pinion, used on construction site for transportation of personnel and materials. Hoist function degree is A8. It is installed and dismounted conveniently and can grow as high as the building grow in height. This hoist has reliable electrical and mechanical safety device. It's efficient and safety vertical transporting equipment.
Hoist For Building Construction Features and Advantages
* The material hoist runs without vibration or trembling. The man and material lift starts and stops without surging or jerking.
* The passenger and elevator is reliable with very little breakdown and is durable with very long work-life.
* Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
* Racks centering at mast reduce partial load torque of builders hoists, makes the construction hoists run more stably and smoothly.
* Applying non-eccentric rollers, make the installation of construction site elevators be faster and easier, with much less error.
* The integrated elevator car roof, which made by a steel plate with edges fully welded one time to complete, enhance hoist cage strength and ensure no water leakage.
* Easy access to electrical panels of elevator for maintenance
* Certified safety braking system of rack and pinion hoist.
Certificate
TUV proved according to European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009.
Hoist For Building Construction Technical Data
| Item & Article No. | SC300BG, KP-B15; SC300/300BG, KP-B16 Hoist For Building Construction |
| Payload capacity |
3,000 kg |
| Lifting speed | 0–60 m/min. |
| Max. lifting height | 250/400 m* |
| Cage Size (internal) | 3.2(Length)*1.5((Width)*2.35(Height) meter |
| Motor control | FC control |
| Engine power | 3x23 kw |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | Square column 650*650 mm with bolted rack |
| Length mast section | 1.508 m |
| Rack module | 8 |
