Rope Protection Construction Rack And Pinion Elevator
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Building site hoist SC200BG KP-B11 SC200/200BG KP-B12 |
| Minimum Order Quantity | 1 set |
| Price | In US Dollar |
| Packaging Details | Export package |
| Delivery Time | 30 Days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Rack And Pinion Elevator | Application | Construction |
|---|---|---|---|
| Design | Modular And According To European Standard | Production | Processed By CNC Machines, Laser, Robots In Assembly Line. |
| Finishing | Sandblasting And Painted, Galvanised | Protection | Rope Protection |
| Highlight | Rope Protection rack pinion lift,rack & pinion elevator hoist |
||
Product Description

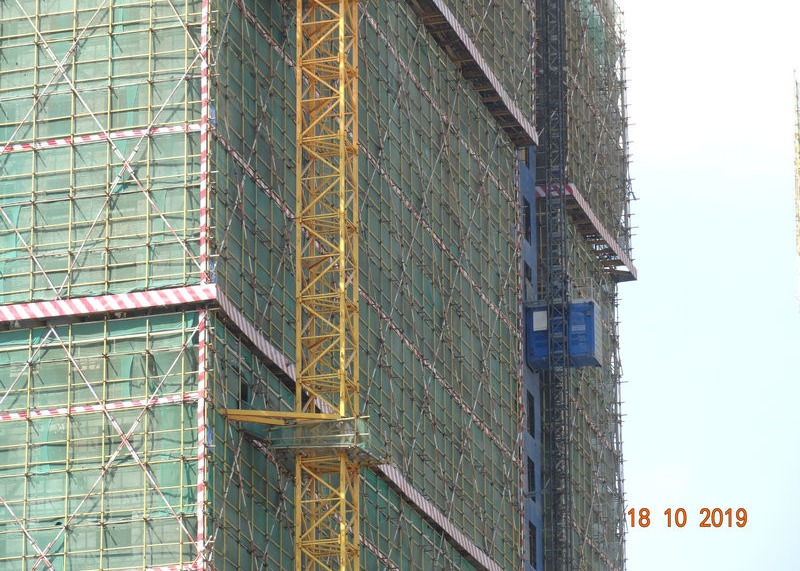

Rope Protection Blue Construction Rack And Pinion Elevator
Rack And Pinion Elevator Introduction
it is set up with safety multiple protection measures like Floor-selecting
and Leveling Device, Elevating Limiter, Rope Protection Device, Parking Safety
Device, Bumper, Upper and Lower Height Restrictor, Anti Rope-breaking Equipment.
Production and Materials
KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
Main structure frame are made of 16Mn and Q345 high strength cold roll steel plate, cut by laser, process by CNC machines in tool fixtures, welded by robots.
Optional equipment
An intelligent elevator control system, with functions of fault detect, display and alarm, and automatic cage landing/stop and floor selector, is available.
Automatic greasing machine for rack and pinion elevator is availble.
Rack And Pinion Elevator Parameters
| Item & Article No. | SC200BG, KP-B11; SC200/200BG, KP-B12 |
| Payload Capacity | 2,000KG per Cage |
| Lifting Speed | 0–60 meter/minute. |
| Max. Lifting Height | 450 m |
| Cage Size (internal) | 3.2(Length)*1.5((Width)*2.35(Height) meter |
| Motor Power | 3x15 KW per Cage |
| Motor Control | Frequency Control (FC) |
| Invertor Power (KW) | 1*55KW per Cage |
| Gearbox | PIELI Helical Gearbox |
| Anti-drop Safety Device | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack module | 8 |
