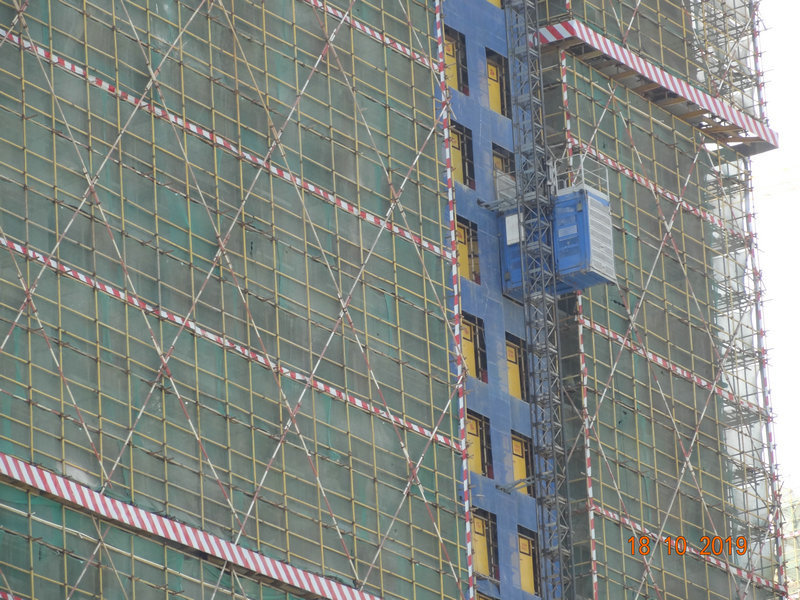

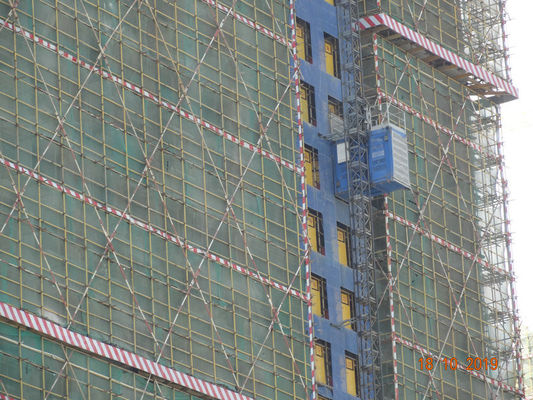

Frequency Conversion 3 Doors Rack Pinion Building Site Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CCC |
| Model Number | Building site rack and pinion hoist SC200BZ MP-B07 SC200/200BZ MP-B08 |
| Minimum Order Quantity | 1 set |
| Price | In USD |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Building Site Hoist | Application | Building Site Transportation |
|---|---|---|---|
| Material | Q345B Steel | Production | As Per European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009. |
| Motor Control | FC | Doors | 3 Doors |
| Highlight | rack pinion lift,FC Building Site Hoist |
||
Product Description
High Speed Frequency Conversion 3 Doors Building Site Hoist
Building Site Hoist Advantage
1.Larger hoisting height, stronger transportation capacity
2. Equipped with fully safety devices to guarantee the safe working. Stable running and comfortable adaptability.
3.Variable -frequency construction elevator are safe, steady and comfortable.
4. The transmission system adopted three drive motors and three sets of reduction gears.........................
5.Imported Electrical components are adopted for the circuit control system. It is especially reliable and safe becasue of the mechanical overload limiting unit adopted.
6. The close standard section has the superior rust and damp resistance, easy assembly and disassembly.
7.This product has no counter weight, dismantling easily and working safetly.
Building Site Hoist Production and Materials
KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
Main structure frame are made of 16Mn and Q345 high strength cold roll steel plate, cut by laser, process by CNC machines in tool fixtures, welded by robots.
The construction lift cage roof is made by a full steel plate, and the edges are totally welded, to ensure no water leakage and high strength.
Building Site Hoist Technical Data
| Item & Article No. | SC200BZ, MP-B07; SC200/200BZ, MP-B08 Building Site Hoist |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–46 m/min. |
| Max. Lifting Height | 450 m |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Cage Doors | 3 Doors, Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 2x15 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
