Frequency Control Motor 46 M / Min Material Lift Elevator
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiate |
| Packaging Details | Suitable for export |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Building Materials Lifting Machine | Material | Q345B Cool Roll Steel Plate |
|---|---|---|---|
| Application | Construction Site, Plants, Etc. | Production | Processed By CNC Machines, Laser, Robots In Assembly Line. |
| Color | As Items Picture | Control | Frequency Control |
| Highlight | 2000kg material lift elevator,30kw material lift elevator |
||
Product Description

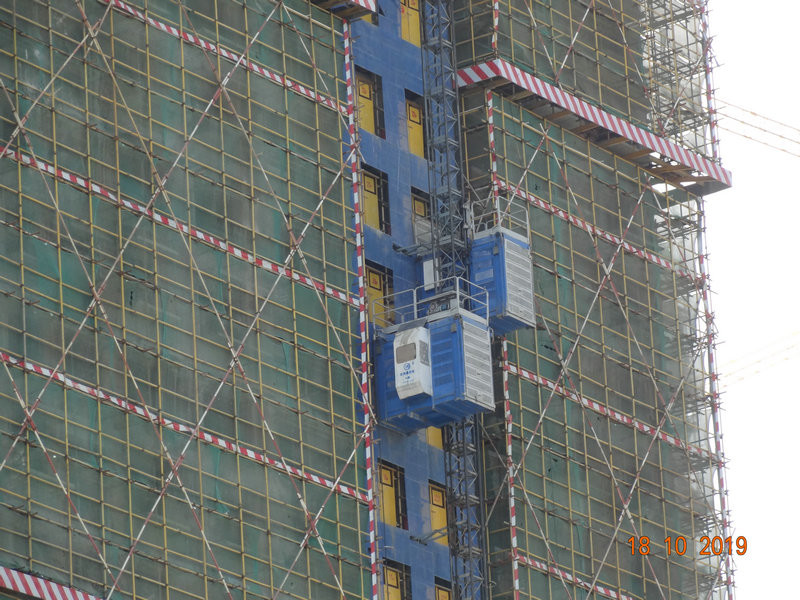

Frequency Control Motor 46 M/Min Building Materials Lifting Machine
We can produce the following kinds of Building Materials Lifting Machine :
1. Normal building hoist
2. High-speed frequency conversion hoist
3. Multifunctional building hoist
4. Curved & Inclined hoist
5. Double pillar Heavy duty hoist
6. Mini Hoist
Building Materials Lifting Machine Design
It is the truly modular rack and pinion hoist design, so the elevator drive devices and cars are generic and interchangeable.
Building Materials Lifting Machine Features and Advantages
The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
Racks centering at mast reduce partial load torque of builders hoists, makes the construction hoists run more stably and smoothly.
Building Materials Lifting Machine Parameters
| Technical Data | KP-B07, B08 Building Materials Lifting Machine |
| Payload Capacity | 2,000 kg |
| Lifting Speed | 0–46 m/min. |
| Max. Lifting Height | 250/400 m* |
| Cage Width (internal) | 1.5 m |
| Cage Length (internal) | 3.2 m |
| Cage Height (internal) | 2.35 m |
| Motor Control | FC control |
| Engine Power | 2x15 kw |
| Gearbox | Helical Reducer |
| Safety Device | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 phase |
| Mast Section | Square column 650*650*1508 mm with bolted rack |
| Rack Module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
