Intelligent Control Steel Construction Rack And Pinion Lift System
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiate |
| Packaging Details | Suitable for export |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Hoisting Equipment In Construction | Material | Q345B Cool Roll Steel Plate |
|---|---|---|---|
| Application | Construction Site, Plants, Etc. | Production | Processed By CNC Machines, Laser, Robots In Assembly Line. |
| Color | Multi Colored | Control | Intelligent Control |
| Highlight | Intelligent rack and pinion lift,steel rack and pinion lift |
||
Product Description

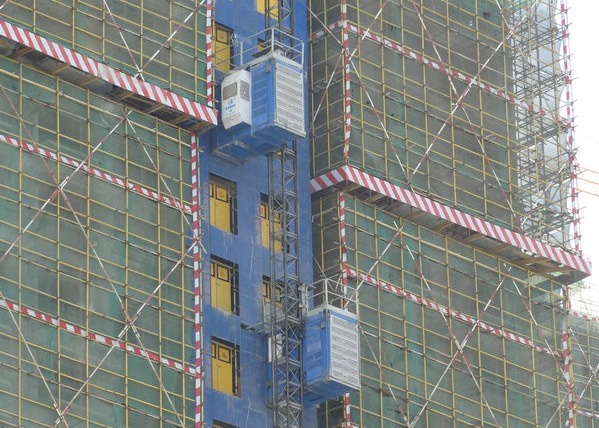

Intelligent Control Steel Hoisting Equipment In Construction
Hoisting Equipment In Construction Features
* Drive devices and cages are generic and interchangeable.
* Apply helical gearaboxes
* Centered racks to reduce Partial load torque of the machine and make it run more stably and smoothly.
* Flap door as loading/unloading ramp is availble.
* Easy access to electrical panels.
Hoisting Equipment In Construction Design
It is the truly modular rack and pinion hoist design, so the elevator drive devices and cars are generic and interchangeable.
Hoisting Equipment In Construction Features and Advantages
The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
Racks centering at mast reduce partial load torque of builders hoists, makes the construction hoists run more stably and smoothly.
Applying non-eccentric rollers, make the installation of construction site elevators be faster and easier, with much less error.
Hoisting Equipment In Construction Parameters
| Technical Data | KP-B07, B08 |
| Payload Capacity | 2,000 kg |
| Lifting Speed | 0–46 m/min. |
| Max. Lifting Height | 250/400 m* |
| Cage Width (internal) | 1.5 m |
| Cage Length (internal) | 3.2 m |
| Cage Height (internal) | 2.35 m |
| Motor Control | FC control |
| Engine Power | 2x15 kw |
| Gearbox | Helical Reducer |
| Safety Device | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 phase |
| Mast Section | Square column 650*650*1508 mm with bolted rack |
| Rack Module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
