Safety 3000Kg Rack & Pinion Building Site Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC300BG KP-B15 SC300-300BG KP-B16 |
| Minimum Order Quantity | 1 set |
| Price | negotiate |
| Packaging Details | Export package |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Building Site Hoist | Application | Construction Site, |
|---|---|---|---|
| Structure | Reasonable Structure | Load | 3000Kg |
| Production | According To European Standard | Finishing | Sandblasting And Painted, Galvanised |
| Highlight | 3000Kg Rack & Pinion Hoist,safety rack & pinion hoist |
||
Product Description

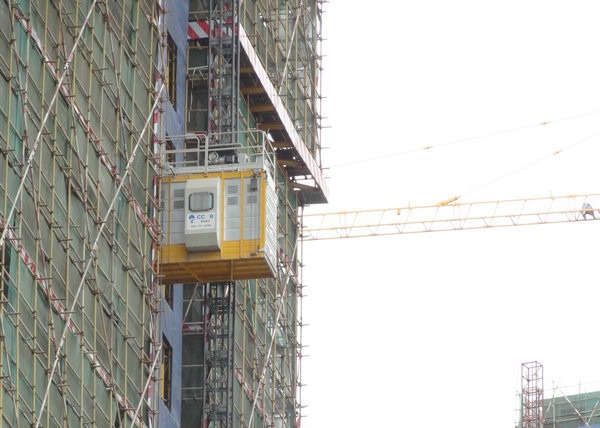

Reasonable Structure Safety 3000Kg Building Site Hoist
Building Site Hoist Configuration
There is a electrical small crane available to facilitate the assembly of the construction elevator.
There is the additional 'C' door at cage side for convenient loading/unloading.
Available in single or twin hoist cage configuration.
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
Manual or Automatic Controls of the hoist is optional.
Lighting inside construction elevator car is LED ceiling lamp
The construction material hoist cage roof doors are equipped with Interlock.
Equipped with hoist drop test facility with remote control.
A frequency control unit (FC), with closed-loop, be equipped.
Building Site Hoist Features and Advantages
* The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
* Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
* Applying non-eccentric rollers, make the installation of construction site elevators be faster and easier, with much less error.
* The integrated elevator car roof, which made by a steel plate with edges fully welded one time to complete, enhance hoist cage strength and ensure no water leakage.
* Easy access to electrical panels of elevator for maintenance
* Certified safety braking system of rack and pinion hoist.
Certificate
TUV proved according to European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009.
Building Site Hoist Technical Data
| Item & Article No. | SC300BG, KP-B15; SC300/300BG, KP-B16 Building Site Hoist |
| Payload capacity |
3,000 kg |
| Lifting speed | 0–60 m/min. |
| Max. lifting height | 250/400 m* |
| Cage Size (internal) | 3.2(Length)*1.5((Width)*2.35(Height) meter |
| Motor control | FC control |
| Engine power | 3x23 kw |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | Square column 650*650 mm with bolted rack |
| Length mast section | 1.508 m |
| Rack module | 8 |
