Frequency Control Motors Rack Pinion Building Site Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiate |
| Packaging Details | Suitable for export |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Rack And Pinion Hoist | Material | Q345B Cool Roll Steel Plate |
|---|---|---|---|
| Application | Construction Site, Plants, Etc. | Production | Processed By CNC Machines, Laser, Robots In Assembly Line. |
| Control | Frequency Control | Usage | Building Site |
| Highlight | Rack Pinion Building Hoist,Rack Pinion Site Hoist |
||
Product Description

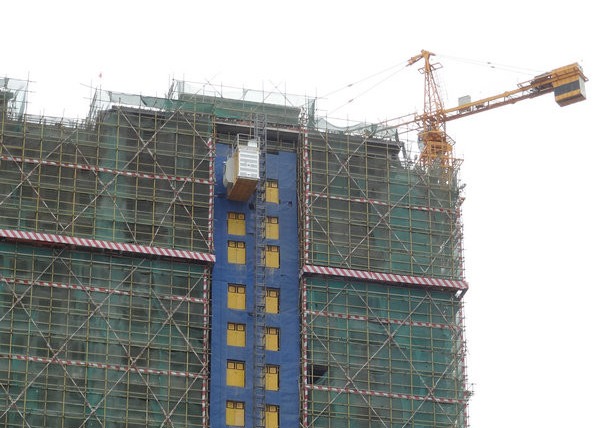

Building Site Frequency Control Motors Rack And Pinion Hoist
Rack And Pinion Hoist Standard Configuration
There is a electrical small crane available to facilitate the assembly of columns and doors on the floors.
Available in single or twin hoist cage configuration.
The Variable Frequency Drive (VFD) construction elevator are with low starting current and much less wear and tear, very smooth starting and stopping.
Lighting inside construction elevator car is LED ceiling lamp
The construction material hoist cage roof doors are equipped with Interlock.
Equipped with hoist drop test facility with remote control.
Rack And Pinion Hoist Design
It is the truly modular rack and pinion hoist design, so the elevator drive devices and cars are generic and interchangeable.
Rack And Pinion Hoist Features and Advantages
The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
Racks centering at mast reduce partial load torque of builders hoists, makes the construction hoists run more stably and smoothly.
Rack And Pinion Hoist Parameters
| Technical Data | KP-B07, B08 |
| Payload Capacity | 2,000 kg |
| Lifting Speed | 0–46 m/min. |
| Max. Lifting Height | 250/400 m* |
| Cage Width (internal) | 1.5 m |
| Cage Length (internal) | 3.2 m |
| Cage Height (internal) | 2.35 m |
| Motor Control | FC control |
| Engine Power | 2x15 kw |
| Gearbox | Helical Reducer |
| Safety Device | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 phase |
| Mast Section | Square column 650*650*1508 mm with bolted rack |
| Rack Module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
