Rack And Pinion Modular 30kw Construction Site Lift
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200(BD) KP-B07, KP-B08 |
| Minimum Order Quantity | 1 unit |
| Price | negotiate |
| Packaging Details | Export package |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item | Construction Site Lift | Design | Modular Design |
|---|---|---|---|
| Material | Cool Roll Steel Plate | Production | Processed By CNC Machines, Laser, Robots In Assembly Line. |
| Color | Customized | Type | Rack And Pinion |
| Highlight | rack and pinion lift,30kw Construction Lift |
||
Product Description

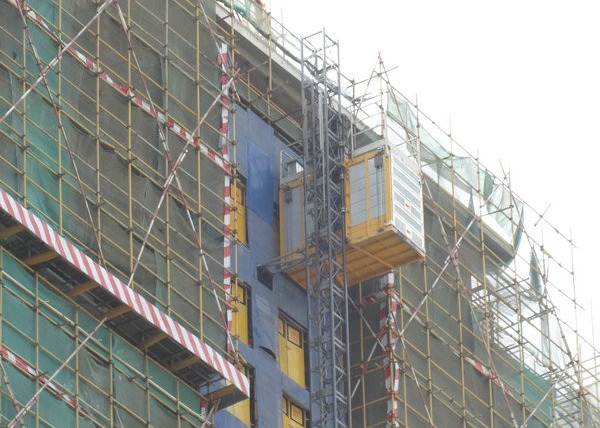

Rack And Pinion Modular Design Construction Site Lift
Construction Site Lift Application
It is widely used in building construction, industrial and mining enterprises, multi-storey workshop, warehouse, terminal stations, contruction sites as industrial and civil architecture, bridge, underground, large chimney, bridge, underground, large chimney, ship industry and so on.
Construction Site Lift Design
It is the truly modular rack and pinion hoist design, so the construction elevator drive devices and cars are generic and interchangeable.
Construction Site Lift Production and Materials
KANGBO implements the true modular design of construction rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
Construction Site Lift Features and Advantages
* The passenger and material elevator is reliable with very little breakdown and is durable with very long work-life.
* Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
* Racks centering at mast reduce partial load torque of builders hoists, makes the construction hoists run more stably and smoothly.
* Applying non-eccentric rollers, make the installation of construction site elevators be faster and easier, with much less error.
* The integrated elevator car roof, which made by a steel plate with edges fully welded one time to complete, enhance hoist cage strength and ensure no water leakage.
Construction Site Lift Parameters
| Technical Data | Construction Site Lift SC200/200BZ KP-B0708 |
| Payload Capacity | 2,000 kg |
| Lifting Speed | 0–46 m/min. |
| Max. Lifting Height | 450 m |
| Cage Width (internal) | 1.5 m |
| Cage Length (internal) | 3.2 m |
| Cage Height (internal) | 2.35 m |
| Motor Control | Frequency Control |
| Engine Power | 2x15 kw |
| Gearbox | Helical Gearbox of KANGBO Make |
| Safety Device | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 phase |
| Mast Section | Square column 650*650*1508 mm with bolted rack |
| Rack Module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
