Single Cabin Q345B Steel Plate Rack Pinion Material Lift Elevator
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CCC |
| Model Number | Construction site lift rack and pinion SC200BG MP-B11 SC200/200BG MP-B12 |
| Minimum Order Quantity | 1 set |
| Price | In USD |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Material Lift Elevator | Application | Trasportation At Construction Site |
|---|---|---|---|
| Design | Truly Modular | Material | Q345B Steel Plate |
| Drive Unit | VFD | Cabin | Single Cabin |
| Highlight | Rack Pinion Lift Elevator,Rack Pinion Material Elevator |
||
Product Description

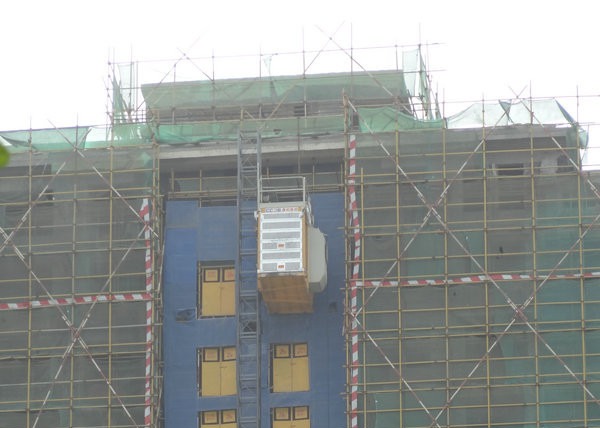

Single Cabin Q345B Steel Plate Material Lift Elevator
Material Lift Elevator Advantage
1. Larger hoisting height, stronger transportation capacity
2. Equipped with fully safety devices to guarantee the safe working. Stable running and comfortable adaptability.
3.Variable -frequency construction elevator are safe, steady and comfortable.
4. The transmission system adopted three drive motors and three sets of reduction gears.........................
5.Imported Electrical components are adopted for the circuit control system. It is especially reliable and safe becasue of the mechanical overload limiting unit adopted.
Material Lift Elevator Features
* Applying non-eccentric rollers, make the installation of construction site elevators be faster and easier, with much less error.
* The integrated elevator car roof, which made by a steel plate with edges fully welded one time to complete, enhance hoist cage strength and ensure no water leakage.
* The additional big size third door at the cage side let the users to use fork trucks to load/unload extremely heavy and big size materials.
* Easy access to electrical panels of elevator for maintenance.
* Certified safety braking system of rack and pinion hoist.
* Frequency control unit (FC), with closed-loop, which gives the passenger and material hoists very smooth starting and stopping with low starting current and less wear and tear.
Material Lift Elevator Technical Data
| Item & Article No. | SC200BG, MP-B11; SC200/200BZ, MP-B12 |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–60 m/min. |
| Max. Lifting Height | 450 m |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Cage Doors | 3 Doors, Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 3x15 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
