Intelligent VFC Motor Control SC200/200 Building Construction Lift
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200, KP-B05,B06 |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiate |
| Packaging Details | Export package |
| Delivery Time | 30 days afetr receipt of T/T or L/C |
| Payment Terms | L/C, T/T |
| Supply Ability | 150 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Building Construction Lift | Processing | Cut By Laser, Processed By CNC Machines |
|---|---|---|---|
| Apply Location | Construction Site, Plants, Etc. | Purpose | Vertical Transportation Of Materials And Persons |
| Color | Yellow | Feature | Intelligent |
| Highlight | SC200/200 lift,400m Construction Site Lift |
||
Product Description

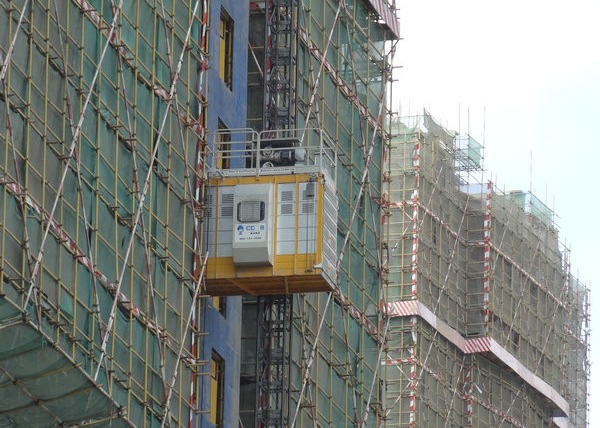

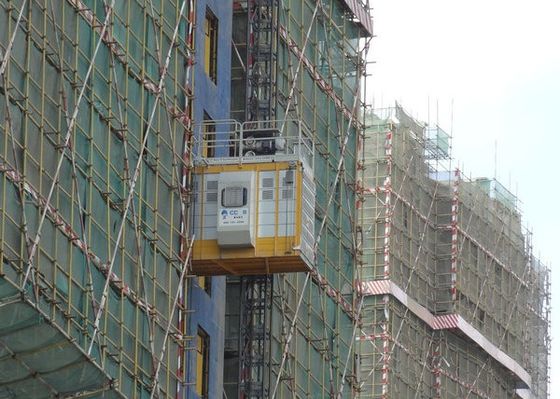

Intelligent VFC Motor Control Building Construction Lift
Building Construction Lift Main Features
1) Rely on motor drive gear, rolling up and down on the gear.
2) Advanced technology at home and abroad, with novel design, reasonable structure, simple operation and easy maintenance.
3) The use of famous brands at home and abroad.
4)With perfect pre-sale, sale, and after sale service.
Building Construction Lift Production
Main parts are made of Q346 cool roll steel plate, cut by Laser and processed by CNC machines and robots.
Enlarged and thickened main steel channel of the cage frame.
The fully welded cage roof edges make the cage roof waterproof.
Building Construction Lift Parameters
| Technical Data | KP-B05, KP-B06 Building Construction Lift |
| Payload capacity | 2,000 kg |
| Lifting speed | 0–36 m/min. |
| Max. lifting height | 400 m |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | VFC control |
| Engine power | 2x11 kw |
| Gearbox | Gear Type Reducer |
| Safety device type | Centrifugal Brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | square column 650*650 mm with bolted rack |
| Length mast section | 1.508 m |
| Rack module | 8 |
