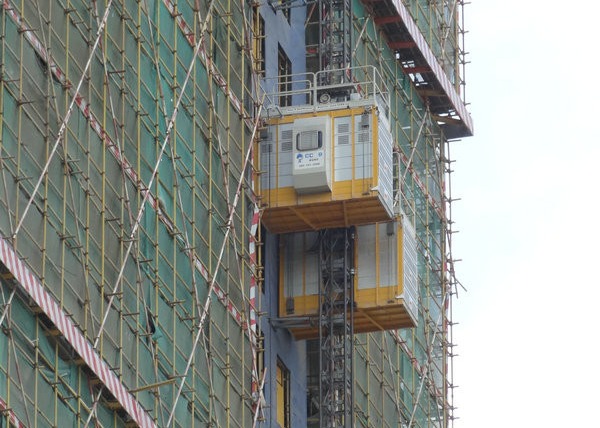

VFC Motor Control 400M Rack Pinion Lift For Construction Site
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200, KP-B05,B06 |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiate |
| Packaging Details | Export package |
| Delivery Time | 30 days afetr receipt of T/T or L/C |
| Payment Terms | L/C, T/T |
| Supply Ability | 150 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Lift For Construction Site | Material | Q345B |
|---|---|---|---|
| Processing | Cut By Laser, Processed By CNC Machines | Apply Location | Plants, Etc. |
| Purpose | Vertical Transportation Of Materials And Persons | Color | Yellow |
| Highlight | 400m Construction Site Lift,Construction Site Lift |
||
Product Description
VFC Motor Control Max Lifting Height 400M Lift For Construction Site
Lift For Construction Site Features
Adopt own-make high efficient gear type reducers.
Typesof exit doors are availble, including Flap Door as loading/unloading ramp.
Lift For Construction Site Production
Main parts are made of Q346 cool roll steel plate, cut by Laser and processed by CNC machines and robots.
Enlarged and thickened main steel channel of the cage frame.
The fully welded cage roof edges make the cage roof waterproof.
Lift For Construction Site Parameters
| Technical Data | KP-B05, KP-B06 |
| Payload capacity | 2,000 kg |
| Lifting speed | 0–36 m/min. |
| Max. lifting height | 400 m |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | VFC control |
| Engine power | 2x11 kw |
| Gearbox | Gear Type Reducer |
| Safety device type | Centrifugal Brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | square column 650*650 mm with bolted rack |
| Length mast section | 1.508 m |
| Rack module | 8 |
FAQ of Rack And Pinion Elevator
Q: What is the building hoist main purpose?
A: Building hoist equipped with double or single cabin to transport the materials and labors up and down. It's the ideal construction equipment for vertical transportation in the field of construction.
Q: What is the main structure of building hoist?
A: The P/M construction hoist mainly contains metal structure, driving system, electrical control system, cable guide & protection system, electrical top crane and safety device.
Q: What is the meaning of the building hoist’s code?
A: Take SC200/200 for example: “SC” stands for rack and pinion hoist, “200/200” stands for double cage and capacity is 2 tons per cage. “SC200” stands for single cage and capacity is 2 tons.
Q: What is the dimension of the cage?
A: Normally the cage dimension is 3X1.5X2.5M (L/W/H) for 2t type hoist. Details should be checked according to our quotation sheet. Also, the size can be customized according to the factual site condition. There are two doors (entrance & exit doors) for each cage, It can be produced as up & down sliding or ramping model for safety and convenience.
