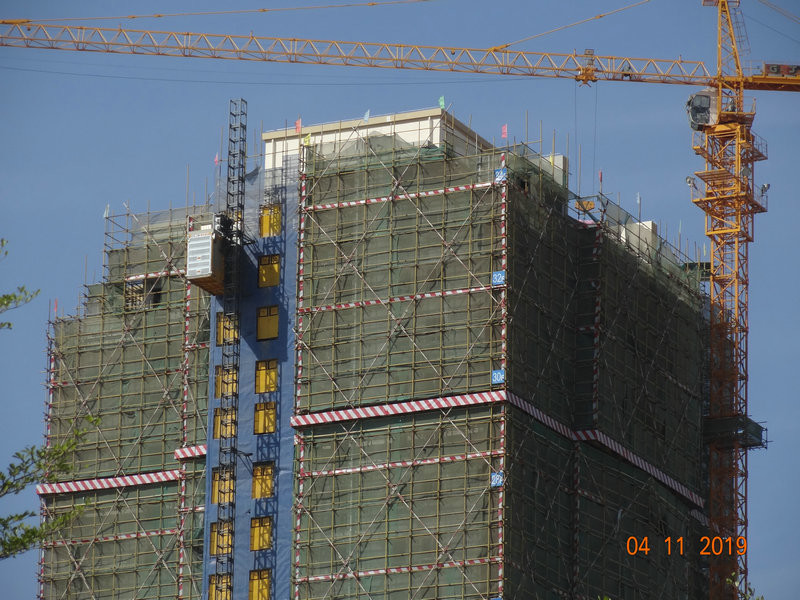

Truly Modular Convenient 250M Construction Site Elevator
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CCC |
| Model Number | Construction site lift SC200BZ MP-B07 SC200/200BZ MP-B08 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate in USD |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item | Construction Site Elevator | Application | Construction Site Transportation |
|---|---|---|---|
| Design | Truly Modular | Material | Q345B |
| Motor Control | VFC (Variable Frequency Control) | Feature | Convenient |
| Highlight | 250M Construction Elevator,VFC Construction Elevator |
||
Product Description
Convenient 250/400 M Construction Site Elevator
Construction Site Elevator Introduction
it is set up with safety multiple protection measures like Floor-selecting and Leveling Device, Elevating Limiter, Rope Protection Device, Parking Safety Device, Bumper, Upper and Lower Height Restrictor, Anti Rope breaking Equipment, among which, the brake performance and brake slide distance of the Rope Protector are above national standards. It is safe, reliable, and harmless to rail-track.
Construction Site Elevator Configuration
There is a electrical small crane available to facilitate the assembly of the construction elevator.
There is the additional 'C' door at cage side for convenient loading/unloading.
Available in single or twin hoist cage configuration.
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
Manual or Automatic Controls of the hoist is optional.
There is LED lighting inside construction elevator car.
Construction Site Elevator Technical Data
| Item & Article No. | SC200BZ, MP-B07; SC200/200BZ, MP-B08 Construction Site Elevator |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–46 m/min. |
| Max. Lifting Height | 250/400 m* |
| Cage Width (Internal) | 1.5 m |
| Cage Length (Internal) | 3.2 m |
| Cage Height (Internal) | 2.35 m |
| Cage Doors | 3 Doors, Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 2x15 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
