Vertical Man And Materials 3000 Kg Construction Site Lift
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC300BG KP-B15 SC300-300BG KP-B16 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate |
| Packaging Details | export package |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Construction Site Lift | Application | Vertical Transportation Of Man And Materials In Construction Site Or Building Site, Bridges, Chimney, Plants, Etc.. |
|---|---|---|---|
| Design | Modular | Production | Processed By CNC Machines, Laser, Robots In Assembly Line. |
| Finishing | Sandblasting And Painted, Galvanised | Feature | Good Adaptability |
| Highlight | 3000 kg material hoist lift,250m material hoist lift |
||
Product Description
Good Adaptability Vertical Transportation Construction Site Lift

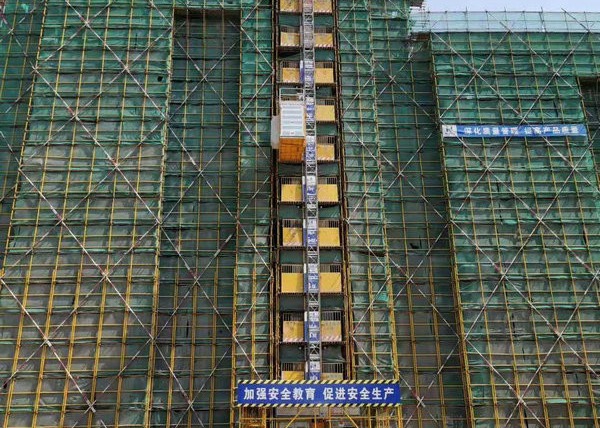

Construction Site Lift Application
It is widely used in building construction, industrial and mining enterprises, multi-storey workshop, warehouse, terminal stations, contruction sites as industrial and civil architecture, bridge, underground, large chimney, bridge, underground, large chimney, ship industry and so on.
Construction Site Lift Production and Materials
KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
The construction material elevator structural parts are made of 16Mn and Q345 high strength steel.
The construction lift cage roof is made by a full steel plate, and the edges are totally welded, to ensure no water leakage and high strength.
Construction Site Lift Standard Configuration
There is a small crane for conenient assembly of the construction lift.
Available in single or twin hoist cage configuration.
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
Manual or Automatic Controls of the hoist is optional.
Construction Site Lift Technical Data
| Item & Article No. | SC300BG, KP-B15; SC300/300BG, KP-B16 Construction Site Lift |
| Payload capacity | 3000 kg |
| Lifting speed | 0–60 m/min. |
| Max. lifting height | 250/400 m* |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | Frequency Control |
| Engine power | 3x23 kw |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Mast Section | Square column 650*650*1508 mm with bolted rack |
| Rack module | 8 |
