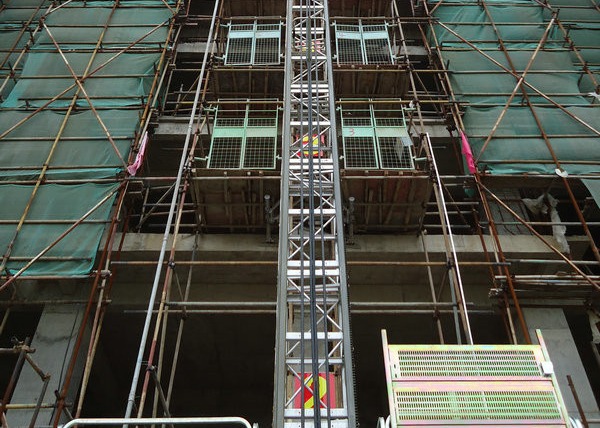

VFC Motor Control 400M Rack Pinion Construction Man Lift
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200, KP-B05,B06 |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiate |
| Packaging Details | Export package |
| Delivery Time | 30 days afetr receipt of T/T or L/C |
| Payment Terms | L/C, T/T |
| Supply Ability | 150 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Construction Man Lift | Material | Q345B Steel |
|---|---|---|---|
| Lift Height | 400M | Apply Location | Construction Site, Plants, Etc. |
| Purpose | Vertical Transportation Of Materials And Persons | Control | VFC Motor Control |
| Highlight | Rack Pinion Man Lift,400m Construction Man Lift |
||
Product Description
VFC Motor Control 400M Construction Man Lift
Construction Man Lift Main Features
1) Galvanized mast sections and parts provide more corrosion resistance.
2) The unique Lean/ Curve mast erection and 7 types of Wall TIE can apply to variety building.
3) Design for the building up to 400m height.
4) Variety options on cage size and number, liftting speed.Load capacities up to 2000kg.
5) Low cost for maintance and parts are avaliable.
Construction Man Lift Production
Main parts are made of Q346 cool roll steel plate, cut by Laser and processed by CNC machines and robots.
Enlarged and thickened main steel channel of the cage frame.
The fully welded cage roof edges make the cage roof waterproof.
Construction Man Lift Parameters
| Technical Data | KP-B05, KP-B06 Construction Man Lift |
| Payload capacity | 2,000 kg |
| Lifting speed | 0–36 m/min. |
| Max. lifting height | 400 m |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | VFC control |
| Engine power | 2x11 kw |
| Gearbox | Gear Type Reducer |
| Safety device type | Centrifugal Brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | square column 650*650 mm with bolted rack |
| Length mast section | 1.508 m |
| Rack module | 8 |
