VFC Motor Control 2000 Kg 400m Construction Site Lift
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200, KP-B05,B06 |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiate |
| Packaging Details | Export package |
| Delivery Time | 30 days afetr receipt of T/T or L/C |
| Payment Terms | L/C, T/T |
| Supply Ability | 150 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Construction Site Lift | Material | Q345B Steel |
|---|---|---|---|
| Load | 2,000 Kg | Apply Location | Construction Site, Plants, Etc. |
| Purpose | Vertical Transportation Of Materials And Persons | Control | VFC Motor Control |
| Highlight | 2000kg Construction Site Lift,400m Construction Lift |
||
Product Description

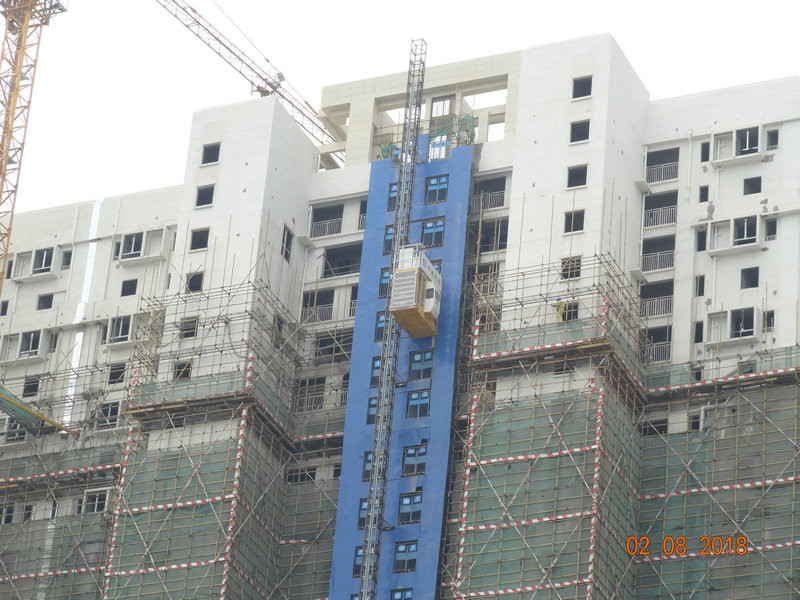

VFC Motor Control 2,000 Kg Construction Site Lift
Construction Site Lift advantage:
1. Adopting advanced technology both at home and abroad,SC series construction elevator is novel in design,resonable in structure,simple in operation,covenient in assembly and disassembly,safe and reliable in working.
2.The unit incorporates famous brand electric components and main parts in transmission mechanism.The steel structure is made of high-quality steel material and welded with CO2 gas shield welding.Surface paint is made with imported raw materials in brmiant ,long lasting colors.
3. The unit is provided with reliable safety interlock devices,safety switch,breakage protection switch,upper and lower limits and limit switches ,etc,Progressive dropping safety devices and safety protection hook are provided.
4. The safety design and configuration fully comply to national standards.
Construction Site Lift Features
Adopt own-make high efficient gear type reducers.
Typesof exit doors are availble, including Flap Door as loading/unloading ramp.
Construction Site Lift Production
Main parts are made of Q346 cool roll steel plate, cut by Laser and processed by CNC machines and robots.
Enlarged and thickened main steel channel of the cage frame.
The fully welded cage roof edges make the cage roof waterproof.
Construction Site Lift Parameters
| Technical Data | KP-B05, KP-B06 |
| Payload capacity | 2,000 kg |
| Lifting speed | 0–36 m/min. |
| Max. lifting height | 400 m |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | VFC control |
| Engine power | 2x11 kw |
| Gearbox | Gear Type Reducer |
| Safety device type | Centrifugal Brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | square column 650*650 mm with bolted rack |
| Length mast section | 1.508 m |
| Rack module | 8 |
