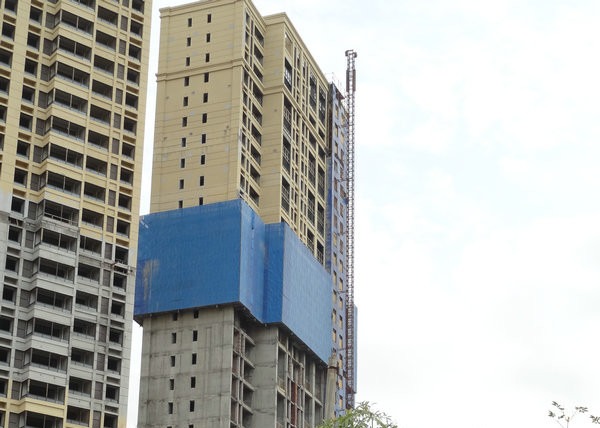

Vertical Transportation 3000 Kg Lift For Construction Site

Vertical Transportation 3,000 Kg Lift For Construction Site

Lift For Construction Site Main parts :

1. Guide rail system

The SC series construction hoist for materials and passengers CE and ISO approved is equipped with the guide rail system made of 20# steel that is 4.5mm thick.

2. Gear rack

The gear rack is made of 55# steel and its service life is about 10 years.

3. Power system

Same as the engine of a car, the elevating conveyor is the core part of an elevator. The housing is made of 104# GB aluminum to avoid any cracking. The 94# tin bronze is used to produce the worm gear. Other parts like the worm and fluted disc are made of 38# chrome green aluminum. Except the bronze worm gear, all other parts aforementioned should experience heat treatment, blackening and coating. The operating time of the construction hoist is 10 to 15 years.

4. Safety devices

a. Fall arrest device

b. Loading capacity limiter

c. Limit switch

d. Upper limit protection device

e. Lower limit protection device

f. Door limit protection device

g. Escaping window limit protection device

h. Bell warning device

i. Emergency stop protection device

j. Buffering protection device

k. Motor overload protector

l. Transformer short-circuit protection device

m. Phase sequence protection device

n.hydraulic self –service skylight ,continent and air-tightness is better

o.other safety door supplied to allow operator come in only

p. self serve tanker ,convenient and easy

q.”s”type door for material ,easy to operate

r.PLC control system ,status of working can be showed and convenient to check the problem

5. Cable

We employ genuine GB cable that is guaranteed on quality.

6. Electrical system

The main devices in the electrical system are all imported.

a. The fan installed helps dissipate the heat effectively.

b. With a time delay relay, the construction lift can stop smoothly and steadily.

c. Alarm bell informs users of the starting of the fall arrest device.

d. Failure warning light will send light signals when there is a failure of the motor or electrical system.

7. Protection fence

The outside fence and fence gate are built with plastic-sprayed perforated plate

8. Additional scaling ladder

For each construction hoist, two scaling ladders are added to the drive system to ensure more convenient and flexible installation.

9. Frequency conversion system (optional)

a. Floor selecting function

b. Precise distance for stopping at a layer

c. Protection of gears and racks

d. Gear shifts can be settled to control the lifting speed

e. The passenger hoist can start and stop stably at constant speed with little noise.

Lift For Construction Site Production and Materials

KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
The construction material elevator structural parts are made of 16Mn and Q345 high strength steel.

The construction lift cage roof is made by a full steel plate, and the edges are totally welded, to ensure no water leakage and high strength.

Lift For Construction Site Standard Configuration

There is a small crane for conenient assembly of the construction lift.

Available in single or twin hoist cage configuration.
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
Manual or Automatic Controls of the hoist is optional.
There is LED lighting inside construction elevator car.

Lift For Construction Site Technical Data
