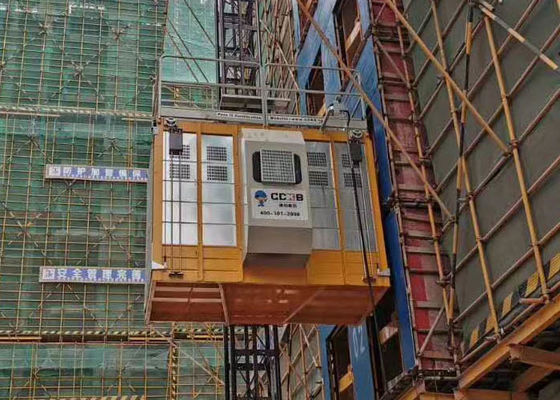

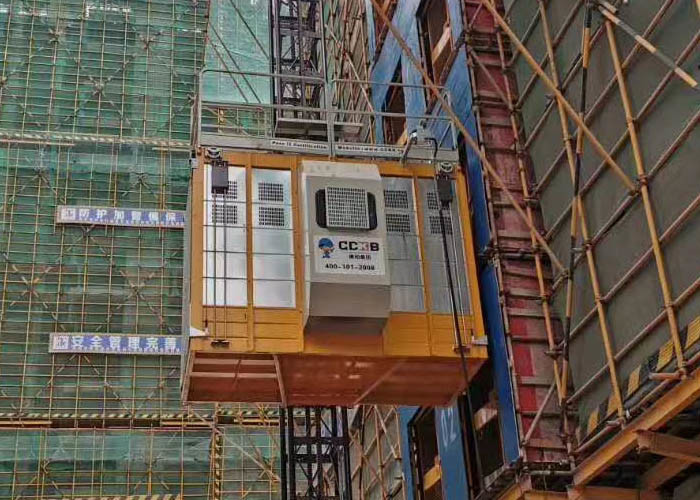

Rack Pinion VFD Single Cage Construction Passenger Hoist 1000kg High Speed
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Construction Site Hoist Rack Pinion Type VFD Single Cage SC100(BZ) KP-B01 |
| Minimum Order Quantity | 1 set |
| Price | In negotiate |
| Packaging Details | A 40'HQ container can load one unit of 50 meter high hoist |
| Delivery Time | 25 days after receipt of down payment |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Description | Construction Site Hoist Rack Pinion Type VFD Single Cage SC100(BZ) KP-B01 | Application | Construction Site, Building Site, Bridges, Chimney, Plants, Etc |
|---|---|---|---|
| Design | According To European Standard And Truly Modular | Production | Standardized Production, Processed By CNC Machines, Laser, Robots In Assembly Line. |
| Material | Q345B Steel | Finishing | Sandblasting And Painted, Galvanised |
| Highlight | Single Cage Construction Passenger Hoist,VFD Construction Passenger Hoist,rack pinion construction passenger lift |
||
Product Description
Top Drive Rack Pinion High Speed Passenger Hoist VFD Single Cage
Detailed Information
| No. | ITEM | Unit | Parameter | Note |
| 1 | Rated Load | KG | 1000 | single cages |
| 2 | Rated Load when erecting and dismantling | KG | 1000 | single cages |
| 3 | Lifting speed | m/min | 0~54 | Retarder ratio 1:16 |
| 4 | Max. Height | m | 300 | |
| 5 | Cage diamension (L*W) | m*m | 3.2*15*2.5 | |
| 6 | Distance between foundation and cage bottom | m | 0.40 | |
| 7 | Wall tie distance | m | ≤9 | |
| 8 | Free end height | m | ≤9 | |
| 9 | Power supply | V | 380V±5% | |
| 10 | Motor Brand | LSZ | ||
| 11 | Motor power | KW | 2*15 | JC=25% |
| 12 | Inverter brand | Schneider | ||
| 13 | Inverter power | KW | 37 | |
| 14 | Rated current | A | 2*33 | |
| 15 | Safety device model | SAJ30-1.4 |
Product Description
The SC100/100Construction lift is an external construction hoist with a top drive rack-and-pinion mechanism which is the new-generation product that is designed with advanced technology. Compared with traditional construction hoist,the new generation SC100/100 is more comfortable,safe,reliable and convenient for dismantling and maintenance with more reasonable and compact structure,strong and durable cages,attractive apperance and dellicate parts.
Feature
1. The SC100/100 Construction lift is equipped with a state-patented safety device which can brake automatically in case of accidental fall.
2. Comparing with traditional building hoists, it is attractive, light and is easy to handle, secure, applicable.
3. SC100/100 Construction passenger hoist is excellent in technical performance, more secure in operating mechanism, and more compact in structure.
4. The driver element on top of the cage is safe and reliable and convenient for maintenance.
5. It has simple electrical control system, convenient to be maintained and low failure rate;
6. With the advantages of reliable performance, safety, easy carrying, high adaptability, it can reduce operators’ work intensity.
