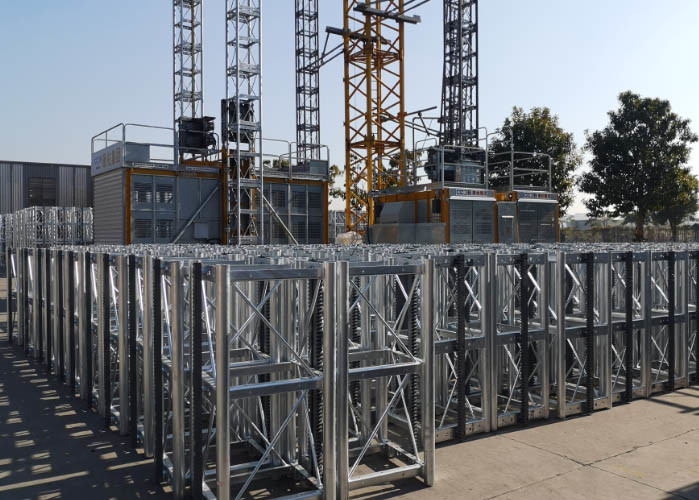

46M/Min Steel Q355B Vertical Construction Hoist With Double Cages
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Construction Site Hoist Rack Pinion Type VFD Single Cage SC100(BZ) KP-B01 |
| Minimum Order Quantity | 1 set |
| Price | In negotiate |
| Packaging Details | A 40'HQ container can load one set of 60 meter high hoist |
| Delivery Time | 25 days after receipt of down payment |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Description | Construction Site Hoist Rack Pinion Type VFD Single Cage SC100(BZ) KP-B01 | Application | Construction Site, Building Site, Bridges, Chimney, Plants, Etc |
|---|---|---|---|
| Design | According To European Standard And Truly Modular | Production | Standardized Production, Processed By CNC Machines, Laser, Robots In Assembly Line. |
| Material | Q345B Steel | Finishing | Sandblasting And Painted, Galvanised |
| Highlight | Steel Q355B Construction Hoist,46M/Min Construction Hoist,Vertical Construction Site Hoist |
||
Product Description
Vertical Transportation For Builders Factories Stock Houses Construction Hoist
Product parameter
| Model Number | SC200/200 |
| Main Material | Steel Q355B |
| Rated Load | 2000kgx2 |
| Inner Cage Dimension | 3.2x1.5x2.2-2.4m |
| Max. Lifting Height | 450m |
| Lifting speed | 0-46m/min |
| After-Sales Service | Engineers available to service machinery overseas |
| Motor Power | 2x2x13kw |
| Mast Section Dimension | 650x650x1508mm |
| Mast Section Weight | 144kg |
| Distance Between Wall Ties | 6-9m |
| Free Ending Height | 7.5m |
| Inverter | W/ or W/O |
| Color | Red/yellow/blue, etc, can be OEM |
Features:
1. Double cages work independently, using two winches transmission, safe and reliable, more productive.
2. Structural strengthening, head of standard sections with seamless steel pipe, section dimensions 1.2*0.87m
3. SS100/100 products equivalent to the equipment of SS120 series construction hoist.
Application
The construction hoist is widely used in the field of industrial and civil construction, bridge construction, underground construction, large chimney construction, ship industry, etc. Being suitable for the vertical transport of materials and people, they can also be used as permanent / semi-permanent electric elevators in various environments like warehouses and high towers.
Introduction:
1. SC200/200 building hoist is single-rail equipment,driven by steel rope. It's a vertical conveyance which is used to carry material.
2. This kind equipment is novel structure; high performance&lower cost, easy install and dismantle. It is equipped with a full set of national standards safety devices and the height can raise itself according to raising of building.
3. It is widely used in various industrial and civil constructions,railways,highways and other high buildings. The construction hoist can reduce the driver's labor intensity and improve the efficiency. This machine is also a new product, which has replaced the old gantry lifter.
