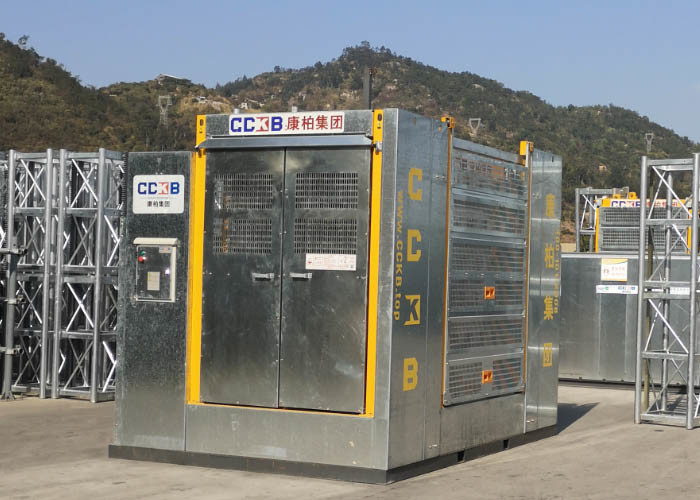

Modular Galvanised Construction Site Hoist EU Standard
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Construction Site Hoist Rack Pinion Type VFD Single Cage SC100(BZ) KP-B01 |
| Minimum Order Quantity | 1 set |
| Price | In negotiate |
| Packaging Details | A 40'HQ container can load one set of 60 meter high hoist |
| Delivery Time | 25 days after receipt of down payment |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Description | Construction Site Hoist Rack Pinion Type VFD Single Cage SC100(BZ) KP-B01 | Application | Construction Site, Building Site, Bridges, Chimney, Plants, Etc |
|---|---|---|---|
| Design | According To European Standard And Truly Modular | Production | Standardized Production, Processed By CNC Machines, Laser, Robots In Assembly Line. |
| Material | Q345B Steel | Finishing | Sandblasting And Painted, Galvanised |
| Highlight | Modular Construction Site Hoist,Galvanised Construction Site Hoist,eu construction hoist elevator |
||
Product Description
Modular Design EU Quality Energy Saver Construction Site Hoist
Product Paramenters
| name | model range | payload(kg) | lifting speed | safety device type | motor power(kw) | invert power(kw) |
|
Double Cage |
SC200/200 |
2*2000 | 0~36m/min | SAJ40-1.2 | 2*2*11 | 2*37 |
| 2*1500 | 0~40m/min | SAJ40-1.2 | 2*2*11 | 2*37 | ||
| 2*2000 | 0~53m/min | SAJ40-1.4 | 2*2*13 | 2*45 | ||
| 2*2000 | 0~63m/min | SAJ40-1.4 | 2*3*11 | 2*75 | ||
| 2*2000 | 0~96m/min | SAJ50-2.0 | 2*3*18.5 | 2*110 | ||
|
Single Cage |
SC200 |
2000 | 0~36m/min | SAJ40-1.2 | 2*11 | 37 |
| 1500 | 0~40m/min | SAJ40-1.2 | 2*11 | 37 | ||
| 2000 | 0~53m/min | SAJ40-1.4 | 2*13 | 45 | ||
| 2000 | 0~63m/min | SAJ40-1.4 | 3*11 | 75 | ||
| 2000 | 0~96m/min | SAJ40-2.0 | 3*18.5 | 110 |
product description
1. Due to the strict raw material procurement control system, our construction hoist lift is guaranteed with safe and reliable performance.
2. The steel, electrical components, hoist cables, high strength bolts and spare parts are all introduced from well-known international and domestic suppliers.
3. The CNC cutting blanking production line ensures the accurate size of the accessories.
4. Structural parts are welded with argon gas shield so as to keep welding quality and prolong the lifespan of the passenger hoist.
5. The cold-formed steel is adopted to ensure the quality and stiffness of the steel plate. The strengthened steel structure design successfully reduces the risk of structural deformation.
6. The surface of the building equipments is treated with polyurethane paint and anti-salt-spray paint. The main parts and accessories are hot-dip galvanized and sprayed with plastics. Hence, the anticorrosion ability of the construction lifting equipment is improved so that its service life is effectively extended.
7. The rigorous and dependable detection means effectively ensure the comprehensive performance of the equipment.
Product advantages
1. Novel structure, double cages work independently, high work efficiency.
The machine is a dual cage working independently, two hosts can be operated by one person. Working performance is more than twice times as efficient as conventional gantry hoist.
2. Strong security, prevention was made, and fall prevention device equipped with advanced, risk falling phenomenon does not occur.
The hoist is equipped with a discharge was made, fall protection and upper and lower device, equipped with a parachute on a hoist equipment, unexpected break for wire rope hoists safe and secure when docked on the standard section.
3. Long working life, occupied by small, easy to install.
The hoist is with name brand winch, long service life, single column double cage occupied by small, convenient installation, high production efficiency.
