Construction Site Q345B Steel Rack And Pinion Lift 36M/Min
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Construction Site Hoist Rack Pinion Type VFD Single Cage SC100(BZ) KP-B01 |
| Minimum Order Quantity | 1 set |
| Price | In negotiate |
| Packaging Details | A 40'HQ container can load one set of 60 meter high hoist |
| Delivery Time | 25 days after receipt of down payment |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Description | Construction Site Hoist Rack Pinion Type VFD Single Cage SC100(BZ) KP-B01 | Application | Construction Site, Building Site, Bridges, Chimney, Plants, Etc |
|---|---|---|---|
| Design | According To European Standard And Truly Modular | Production | Standardized Production, Processed By CNC Machines, Laser, Robots In Assembly Line. |
| Material | Q345B Steel | Finishing | Sandblasting And Painted, Galvanised |
| Highlight | Construction Site Rack And Pinion Lift,Q345B Steel Rack And Pinion Lift,Rack Pinion Lift 36M/Min |
||
Product Description
Construction Site Hoist
Product parameter
| Type | Construction Hoist SC200/200 | |
| Place of origin | Shandong, China (Mainland) | |
| Brand Name | RUNCHEN | |
| Model | SC200/200 | |
| Drive Type | Hydraulic | |
| Lift Mechanism | Lift Chain | |
| Lift Drive/Actuation | Electric Motor | YZZ132M-4 |
| Power 2*3*11kw | ||
| Rated loading capacity | 2*2000kg | |
| Rated passengers | 2*18 | |
| Max.lifting height | 150/300m | |
| Max.lifting weight | 2t/cage | |
| Construction hoist | construction hoist | |
| Cage inner dimension L*W*H | 3.2*1.5*2.45m | |
| Dimension of standard section | 0.65*0.65*1.508m/0.8*0.8*1.508m | |
| Rating hoisting speed | 33/36 m/min | |
| Gear reducer | center distance | 125m |
| transmission ratio | 1:16 | |
| Safety device | form | incremental |
| speed of action | 51.6m/min | |
| braking torque | ≥3000N.m | |
Advantages of SC200/200 Construction Hoist
1. Factory direct offer, low price
2. Low operating cost but high efficiency
3. Simplicity in operation
4. High degree of safety
5. Long durability
6. Low energy consumption

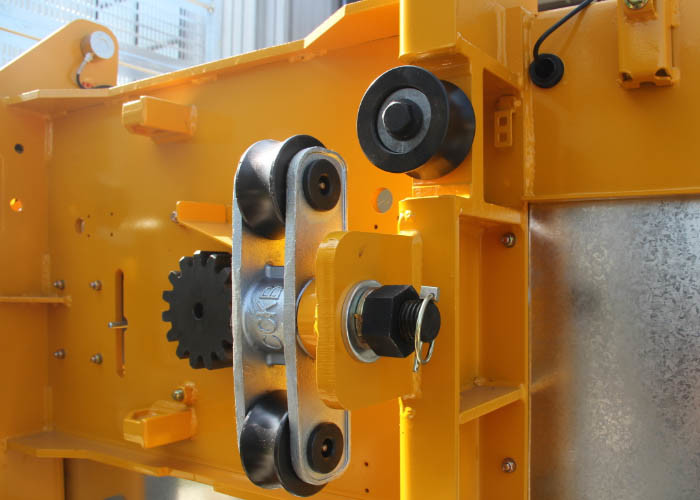

Main Parts of Building Hoist
1. The gearing adopts imported bearing, enameled cable, and oil seal.
2. The electric parts adopt products from world renowned manufactures such as Schneider.
3. The racks and pinion adopts special material and heat-treatment technique, which prolong the life of these parts.
4. The steel structure uses quality steel from famous domestic manufactures.
5. The surface of the structure can apply paint-spray, parkerozing baking finish or hot galvanizing processing according to users requirements,
6. The cage can be produced and decorated by aluminum molded board, punched-plate or figured aluminm board.
