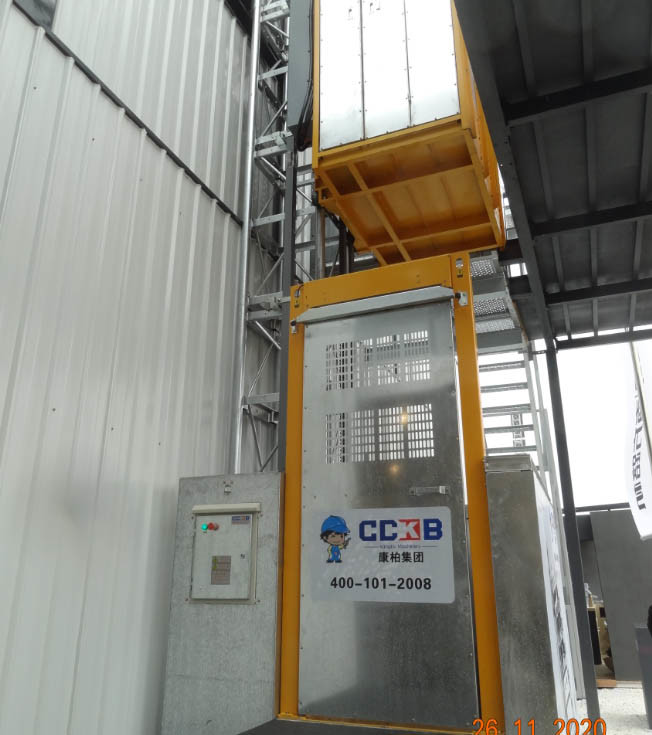

Sandblasting Painted Q355B Steel VFD Building Site Hoist

  • Sandblasting Painted Q355B Steel VFD Building Site Hoist
Place of Origin CHINA
Brand Name KANGBO
Certification TUV
Model Number Construction Site Hoist Rack Pinion Type VFD Single Cage SC100(BZ) KP-B01
Minimum Order Quantity 1 set
Price In negotiate
Packaging Details A 40'HQ container can load one set of 60 meter high hoist
Delivery Time 25 days after receipt of down payment
Payment Terms T/T, L/C
Supply Ability 300 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Description Construction Site Hoist Rack Pinion Type VFD Single Cage SC100(BZ) KP-B01 Application Construction Site, Building Site, Bridges, Chimney, Plants, Etc
Design According To European Standard And Truly Modular Production Standardized Production, Processed By CNC Machines, Laser, Robots In Assembly Line.
Material Q355B Steel Finishing Sandblasting And Painted, Galvanised
Highlight

VFD Building Site Hoist

,

Q355B Steel Building Site Hoist

,

Sandblasting Painted Construction Site Hoist
Leave a Message
Product Description

Q355b Steel Sand Blasting And Paint Vfd Construction Site Hoist





Products Description



Type Lifting Capacity Lifiting Speed Motor Power VFD Safety device



SC100 L



1000Kg

 0～40m/min 2×11Kw



30Kw



SAJ 30-1.2
0～45m/min 2×13Kw



SC 150 L



1500Kg

 0～40m/min 2×13Kw 30Kw



SAJ 40-1.2
0～45m/min 2×15Kw 37Kw





SC 200 L





2000Kg

 0～33m/min 2×13Kw 30Kw





SAJ 40-1.2
0～40m/min 3×11Kw 37Kw
0～45m/min 3×13Kw 45Kw
SC300 L 3000Kg 0～45m/min 3×15Kw 55Kw SAJ 40-1.2



SC 100/100 L



1000Kg×2EA

 0～40m/min 2×11Kw×2EA



30Kw×2EA



SAJ 30-1.2
0～45m/min 2×13Kw×2EA



SC 150/150 L



1500Kg×2EA

 0～40m/min 2×13Kw×2EA 30Kw×2EA



SAJ 40-1.2
0～45m/min 2×15Kw×2EA 37Kw×2EA





SC 200/200 L





2000Kg×2EA

 0～33m/min 2×13Kw×2EA 30Kw×2EA





SAJ 40-1.2
0～40m/min 3×11Kw×2EA 37Kw×2EA
0～45m/min 3×13Kw×2EA 45Kw×2EA
SC300/300 L 3000Kg×2EA 0～45m/min 3×15Kw×2EA 55Kw×2EA SAJ 40-1.2





Product Application



We are special supplier of building hoist in China, our building hoist have been Widely exported to all over the world and won good reputation, whose payload capacity is as much as 5000kg, lifting speed can reach up to 96m/min, and the erection height reaches up to 550m., our products have been widely used for transportation for both men and cargo in field of general buildings, but also industry, electric power, mining well, oil, chemical industry etc.





Product details



1. Guide rail system The building equipments is equipped with the guide rail system made of 20# steel that is 4.5mm thick.

2. The gear rack is made of 55# steel and its service life is about 10 years.

3. Power system Same as the engine of a car, the elevating conveyor is the core part of an elevator. The housing is made of 104# GB aluminum to avoid any cracking. The 94# tin bronze is used to produce the worm gear. Other parts like the worm and fluted disc are made of 38# chrome green aluminum. Except the bronze worm gear, all other parts aforementioned should experience heat treatment, blackening and nitride coating. The work life time of the construction hoist is more than 15 years.
