VFD Single Cage Rack Pinion Hoist 54M/Min For Construction Site
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Construction Site Hoist Rack Pinion Type VFD Single Cage SC100(BZ) KP-B01 |
| Minimum Order Quantity | 1 set |
| Price | In negotiate |
| Packaging Details | A 40'HQ container can load one set of 60 meter high hoist |
| Delivery Time | 25 days after receipt of down payment |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Description | Construction Site Hoist Rack Pinion Type VFD Single Cage SC100(BZ) KP-B01 | Application | Construction Site, Building Site, Bridges, Chimney, Plants, Etc |
|---|---|---|---|
| Design | According To European Standard And Truly Modular | Production | Standardized Production, Processed By CNC Machines, Laser, Robots In Assembly Line. |
| Material | Q345B Steel | Finishing | Sandblasting And Painted, Galvanised |
| Highlight | Single Cage Rack Pinion Hoist,Rack Pinion Hoist 54M/Min,VFD Construction Site Hoist |
||
Product Description

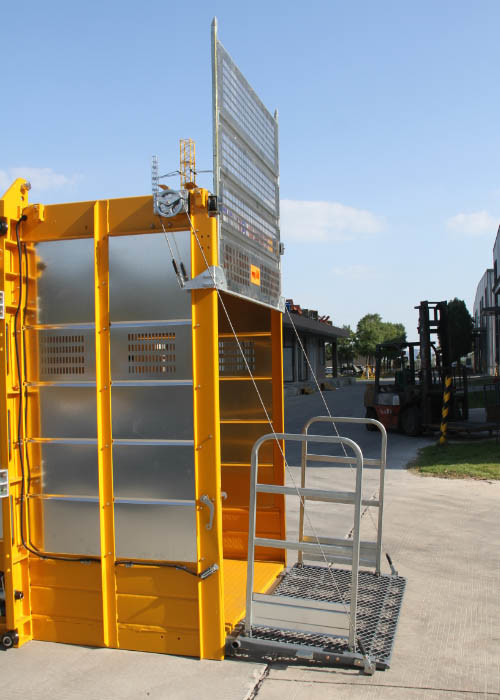

Construction Site Hoist VFD Single Cage SC100(BZ) KP-B01
Product parameter
Engine |
Speed of lifting | m/min | 0-54 |
| Motor power | Kw | 15*2 | |
| Driver pinion | Teeth | 15 | |
|
Main performance parameters |
Rated load | kg | 1000 |
| Load of install crane | Kg | 300 | |
| Model specification | SC100 | single cage | |
|
Pinion drive towing-type |
Max height | m | 450 |
| Mast size | m | 0.65*0.65 | |
| Each mast section height | m | 1.508 |
Product Application
We are special supplier of building hoist in China, our building hoist have been Widely exported to all over the world and won good reputation, whose payload capacity is as much as 4000kg, lifting speed can reach up to 96m/min, and the erection height reaches up to 350m., our products have been widely used for transportation for both men and cargo in field of general buildings, but also industry, electric power, mining well, oil, chemical industry etc.
Product details
1). Each cage load capacity: 2000kg
2). Lifting speed: 36m/min or 63m/min or 96m/min
3). Mast section: Paint or hot dipping zinc
4). Cage: Single cage or twin cage
5). Recommended cage inner dimension(LxWxH)(m): 3.2x1.5x2.5; 3.6x1.5x2.5; 3.8x1.5x2.5; 4.0x1.5x2.5; 4.2x1.5x2.5, cage dimension is according to requirement of customer and special project.
6). Motor and reducing device: Made in China, can be SEW Germany according to requirements.
7). Counterweight: With counterweight or without counterweight
8). The colors of cage: Yellow, or red, or blue
9). Other each cage load capacity for your to choose: 1000kg, 2000kg, 2700kg, or 3200kg
Advantages:
(1) safe and reliable, strong applicability, wide range of USES, etc.
(2) High operational reliability.
(3) Easy to use (install, dismount and maintain).
(4) Exceptional service and technical support.
(5) Nice price, Will be within your budget.
