1000kg Q345B Steel Construction Site Hoist with VVVF speed regulation
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Construction Site Hoist Rack Pinion Type VFD Single Cage SC100(BZ) KP-B01 |
| Minimum Order Quantity | 1 set |
| Price | In negotiate |
| Packaging Details | A 40'HQ container can load one set of 60 meter high hoist |
| Delivery Time | 25 days after receipt of down payment |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Description | Construction Site Hoist Rack Pinion Type VFD Single Cage SC100(BZ) KP-B01 | Application | Construction Site, Building Site, Bridges, Chimney, Plants, Etc |
|---|---|---|---|
| Design | According To European Standard And Truly Modular | Production | Standardized Production, Processed By CNC Machines, Laser, Robots In Assembly Line. |
| Material | Q345B Steel | Finishing | Sandblasting And Painted, Galvanized |
| Highlight | Q345B Steel Construction Site Hoist,1000kg Construction Site Hoist,VVVF Speed Regulation Building Site Hoist |
||
Product Description

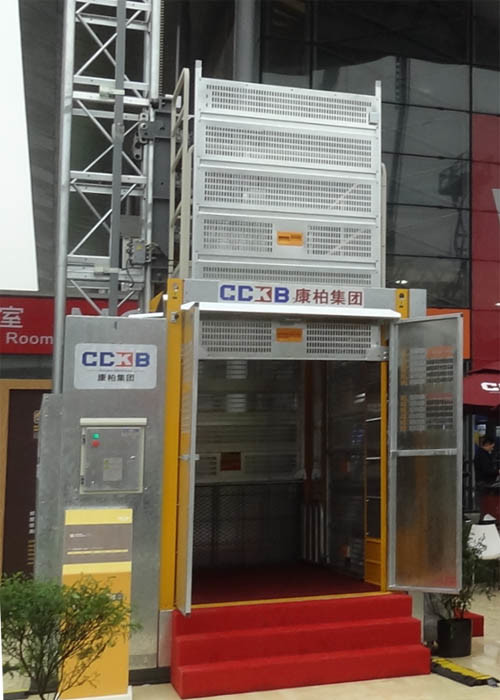

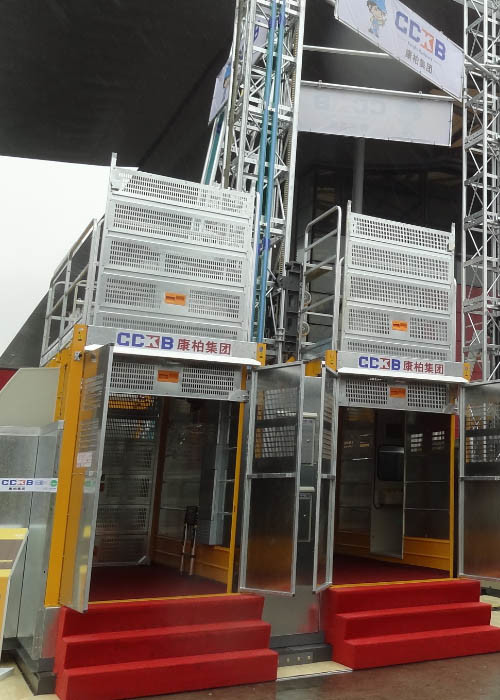

Construction Site Hoist
Details Specification
| Item | Construction hoist |
| Model | SC100/100 |
| Rated capacity/per cage | 1000kg |
| Lifting speed | 0-96m/min |
| Cage size | 3.2*1.5*2.25m |
| Motor power | 3*22kw |
| Speed ratio | 1:18 |
| Invertor Power | 75 kw |
| Safety device | SAJ40-1.2 |
| Mast section size | 0.45*0.45*1.508m or 0.65*0.65*1.508m |
| Max. Installation height | 250m |
| Cable type | Cable basket/cable trolley |
product description
SC series construction elevator, adopt external setting meshing rack and pinion type design,rated load is 1T, rated lifting height is 150m. Equipped with a national patent approved progressive safety device, can brake automatically when falling situation occurs. And the drive system is on the top of the cage, reliable and easy to operate and maintenance.The highest working lifting height can up to 300M. Construction Elevator is widely used in Construction Projects, Such as industrial and residential building projects, bridge construction, underground construction, large chimney construction buildings and shipping building industry and other place.Which is a vertical transport equipment used for material and personnel as a permanent and temporary elevator also van be used for warehouse and high towers buildings projects.
Advantages:
SC series building hoist adopted computer aided design. Comparing with traditional building hoists, it is attractive, light, easy to handle, secure, applicable and popular. Depending on special needs of regular or irregular sections, the lifting capacity can reach up to 1-2 tons, and the running speed can reach 28~38m/min. Moreover, VVVF speed regulation and PLC enable 0-68 limitless speed, automatic layer selecting and leveling as required. SC series building hoist is excellent in technical performance, more secure in operating mechanism, and more compact in structure.
Features
1) rely on motor drive gear, rolling up and down on the gear.
2) advanced technology at home and abroad, with novel design, reasonable structure, simple operation and easy maintenance.
3) the use of famous brands at home and abroad
4)With perfect pre-sale, sale, and after sale service
