According To European Standard And Truly Modular Construction Site Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Construction Site Hoist Rack Pinion Type VFD Single Cage SC100(BZ) KP-B01 |
| Minimum Order Quantity | 1 set |
| Price | In negotiate |
| Packaging Details | A 40'HQ container can load one set of 60 meter high single cage hoist |
| Delivery Time | 25 days after receipt of down payment |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Description | Construction Site Hoist Rack Pinion Type VFD Single Cage SC100(BZ) KP-B01 | Application | Construction Site, Building Site, Bridges, Chimney, Plants, Etc |
|---|---|---|---|
| Design | According To European Standard And Truly Modular | Production | Standardized Production, Processed By CNC Machines, Laser, Robots In Assembly Line. |
| Material | Q345B Steel | Finishing | Sandblasting And Painted, Galvanised |
| Max Lifting Height | 450m | Power Supply | 380V~480V 50/60Hz, Three Phase |
| Highlight | Truly Modular Construction Site Hoist,450m Lifting Height Construction Site Hoist,Truly Modular Building Site Hoist |
||
Product Description
According To European Standard And Truly Modular Construction Site Hoist
Product Description

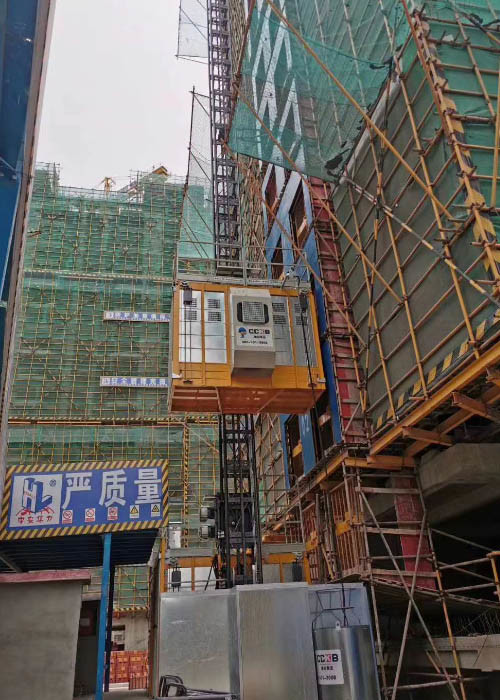

Construction hoist is also called building construction elevator, outdoor elevator, building lifts. It is widely used as construction machinery to lift people and building materials.
Construction hoist is mainly used in the internal and external decoration, bridge building, chimney, etc
SC series Construction Hoist/Elevators adopts rack-and-pinion transmission. For so many years, having digested domestic and foreign advanced technology and innovated, it has become newly designed, solid structure, convenient operation, easy installation and disassembly, beautiful shape and reliable performance.
> Mast Section Dimension: 650 * 650 * 1508 mm
> Main Chord: Φ76 * 4.75, Φ76 * 6.0, Q355B
Structure forms varies: SC two or three drive without balance, built-in upper-setting and frequency control, etc.
Application: the equipment is applicable to people and material transporting in high building construction that above 60m, such as bridges, chimneys, mansions, etc.. And can also be used in warehouse , wharf, etc for vertical transportation
Product Paramenters
| name | model range | payload(kg) | lifting speed | safety device type | motor power(kw) | invert power(kw) |
|
Double Cage |
SC200/200 |
2*2000 | 0~36m/min | SAJ40-1.2 | 2*2*11 | 2*30 |
| 2*1500 | 0~40m/min | SAJ40-1.2 | 2*2*11 | 2*30 | ||
| 2*2000 | 0~46m/min | SAJ40-1.6 | 2*2*15 | 2*37 | ||
| 2*2000 | 0~63m/min | SAJ40-1.6 | 2*3*15 | 2*75 | ||
| 2*2000 | 0~96m/min | SAJ40-2.0 | 2*3*18.5 | 2*110 | ||
|
Single Cage |
SC200 |
2000 | 0~36m/min | SAJ40-1.2 | 2*11 | 30 |
| 1500 | 0~40m/min | SAJ40-1.2 | 2*11 | 30 | ||
| 2000 | 0~46m/min | SAJ40-1.4 | 2*15 | 37 | ||
| 2000 | 0~63m/min | SAJ40-1.4 | 3*15 | 75 | ||
| 2000 | 0~96m/min | SAJ40-2.0 | 3*18.5 | 110 |
Color: yellow
Dimension of mast section 650*650*1508mm
Mass of mast section 150kg
Mass of external cages 1480kg
Space dimension in cage 3.2*1.5*2.35m
Product advantages
1. Novel structure, double cages work independently, high work efficiency.
The machine is a dual cage working independently. Working performance is more than twice times as efficient as conventional gantry hoist.
2. Strong security, prevention was made, and fall prevention device equipped with advanced, risk falling phenomenon does not occur.
The hoist is equipped with a discharge was made, fall protection and upper and lower device, equipped with a centrifugal brake on a hoist equipment.
3. Long working life, occupied by small, easy to install.
The hoist is with name brand motors, long service life, single column double cage occupied by small, convenient installation, high production efficiency.
