VFD Rack And Pinion Hoist Max Lifting Height 250/400 M For Man And Material
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200BG |
| Minimum Order Quantity | 1 set |
| Price | negotiate |
| Packaging Details | export package |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item | Rack And Pinion Hoist | Application | Building Site, Plants, Stock House, Etc. |
|---|---|---|---|
| Design | Truly Modular And EU Regulations | Material | Q355B Cool Roll Steel Plate |
| Production | Processed By CNC Machines, Laser, Robots In Assembly Line. | Finishing | Sandblasting, Painted And Galvanised |
| Highlight | 400M Rack And Pinion Hoist,Material Rack And Pinion Hoist,Vfd Rack And Pinion Lift |
||
Product Description

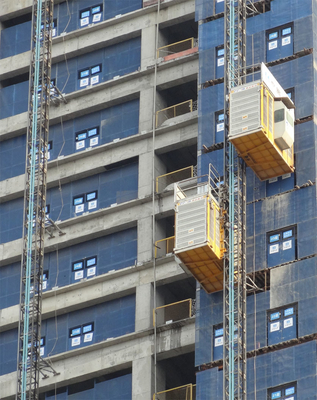

VFD Rack And Pinion Hoist Max Lifting Height 250/400 M For Man And Material
Features and Advantages
* The material hoist runs without vibration or trembling.
* The passenger and material elevator is reliable with very little breakdown and is durable with very long work-life.
* Adopt helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
* Racks centering at mast reduce partial load torque of builders hoists, makes the construction hoists run more stably and smoothly.

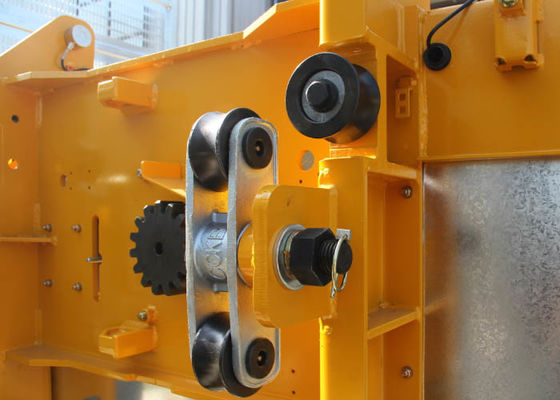

* Applying non-eccentric rollers, make the installation of construction site elevators be faster and easier, with much less error.
* The integrated elevator car roof, which made by a steel plate with edges fully, enhance hoist cage strength and ensure no water leakage.
* Easy access to electrical panels of elevator for maintenance
* Certified safety braking system of rack and pinion hoist.
* The elevators are equipped with full set of safety facilities, including centrifugal brake, limit switches, Electromechanical interlocks.
* Frequency control unit (FC), with closed-loop, which gives the passenger and material hoists very smooth starting and stopping with low starting current and less wear and tear.
Technical Data
| Description | Rack and Pinion Elevator SC200/200 KP-B09, B10 |
| Payload capacity | 2,000 kg |
| Lifting speed | 0–60 m/min. |
| Max. lifting height | 250/400 m* |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | FC control |
| Engine power | 2x23 kw/87Hz |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | square column 650*650*1508 mm with bolted rack |
| Rack module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
